Briggs and Stratton 310000 and 330000 Engine Parts

Briggs and Stratton 310000 and 330000 Engine Parts

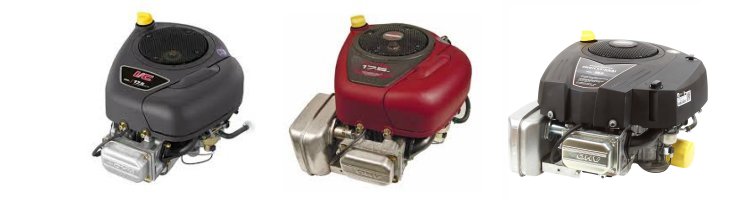

This engine is most often seen on Ride on lawnmowers, Garden tractors and other fairly large items of equipment and ranges in HP from 10HP to 13HP depending upon model and is most often branded as - Intek, I/C, Power Built, 3120, 3125 or 3130. It has a plastic top cover which gives it a rounded traingle type shape when viewed from above. Its Model, Type and Code numbers are stamped into the top edge of the rocker cover and the model will begin with 31 or 33 e.g. 310707, 31A507, 31E677, 31Q777, 331777, 33M977 etc.


276781 Repair Manual - Single Cylinder OHV Air-Cooled Engines

276781 Repair Manual - Single Cylinder OHV Air-Cooled Engines

£19.45 (£16.21 Excluding VAT at 20%)
992304 Spark Plug - OHV

992304 Spark Plug - OHV

£2.70 (£2.25 Excluding VAT at 20%)
992355 Spark Plug Wrench - 16mm + 19mm

992355 Spark Plug Wrench - 16mm + 19mm

£7.92 (£6.60 Excluding VAT at 20%)
794422 Air Filter/Cleaner (Standard)

794422 Air Filter/Cleaner (Standard)

£21.66 (£18.05 Excluding VAT at 20%)
697015 Pre-Filter/Cleaner (Suits 794422, 795115)

697015 Pre-Filter/Cleaner (Suits 794422, 795115)

£6.42 (£5.35 Excluding VAT at 20%)
594201 Air Filter/Cleaner

594201 Air Filter/Cleaner

£22.56 (£18.80 Excluding VAT at 20%)
797704 Pre-Filter/Cleaner (Suits 796031)

797704 Pre-Filter/Cleaner (Suits 796031)

£6.60 (£5.50 Excluding VAT at 20%)
597243 Knob

597243 Knob

£8.46 (£7.05 Excluding VAT at 20%)
597244 Knob

597244 Knob

£3.96 (£3.30 Excluding VAT at 20%)
793569 Air Filter/Cleaner

793569 Air Filter/Cleaner

£32.82 (£27.35 Excluding VAT at 20%)
793685 Pre Filter/Cleaner (Suits 793569)

793685 Pre Filter/Cleaner (Suits 793569)

£6.66 (£5.55 Excluding VAT at 20%)
492932S Oil Filter - 57mm x 76mm

492932S Oil Filter - 57mm x 76mm

£14.16 (£11.80 Excluding VAT at 20%)
696854 Oil Filter - Extended Life - 57mm x 76mm

696854 Oil Filter - Extended Life - 57mm x 76mm

£23.28 (£19.40 Excluding VAT at 20%)
491056 Oil Filter - 86mm x 76mm

491056 Oil Filter - 86mm x 76mm

£15.72 (£13.10 Excluding VAT at 20%)
594200 + 796532 Oil Drain Extension Kt

594200 + 796532 Oil Drain Extension Kt

£26.76 (£22.30 Excluding VAT at 20%)
5401K Oil Drain Valve Kit

5401K Oil Drain Valve Kit

£14.64 (£12.20 Excluding VAT at 20%)
795027 Fuel/Petrol Cap

795027 Fuel/Petrol Cap

£7.50 (£6.25 Excluding VAT at 20%)
395051R Fuel Hose/Line. 6.35mm x 11mm x 20cm

395051R Fuel Hose/Line. 6.35mm x 11mm x 20cm

£4.80 (£4.00 Excluding VAT at 20%)
710075 Fuel Hose Clamp - 11mm Dia

710075 Fuel Hose Clamp - 11mm Dia

£3.84 (£3.20 Excluding VAT at 20%)
691038 Fuel Hose Clamp - 11mm Dia

691038 Fuel Hose Clamp - 11mm Dia

£3.84 (£3.20 Excluding VAT at 20%)
791850 Fuel Hose Clamp - 13mm Dia

791850 Fuel Hose Clamp - 13mm Dia

£3.84 (£3.20 Excluding VAT at 20%)
698183 Fuel Shut Off Valve/Tap - 180°

698183 Fuel Shut Off Valve/Tap - 180°

£9.60 (£8.00 Excluding VAT at 20%)
298090S Fuel Filter - 150 micron (Gravity Fed Systems)

298090S Fuel Filter - 150 micron (Gravity Fed Systems)

£5.76 (£4.80 Excluding VAT at 20%)
394358S Fuel Filter - 75 micron (Fuel Pump Fed Systems)

394358S Fuel Filter - 75 micron (Fuel Pump Fed Systems)

£5.76 (£4.80 Excluding VAT at 20%)
84001895 Fuel Filter - 40 micron (Fuel Pump Fed Systems)

84001895 Fuel Filter - 40 micron (Fuel Pump Fed Systems)

£9.54 (£7.95 Excluding VAT at 20%)
845125 Fuel Filter - Vanguard

845125 Fuel Filter - Vanguard

£8.46 (£7.05 Excluding VAT at 20%)
597338 Fuel Pump

597338 Fuel Pump

£34.32 (£28.60 Excluding VAT at 20%)

Symptomatic failure information

796260 Governor Spring

796260 Governor Spring

£7.38 (£6.15 Excluding VAT at 20%)
594593 Carburettor

594593 Carburettor

£89.64 (£74.70 Excluding VAT at 20%)
796184 Carburettor Overhaul Kit

796184 Carburettor Overhaul Kit

£49.56 (£41.30 Excluding VAT at 20%)
698781 Float Bowl Gasket

698781 Float Bowl Gasket

£16.74 (£13.95 Excluding VAT at 20%)
696136 Float Needle Valve

696136 Float Needle Valve

£21.60 (£18.00 Excluding VAT at 20%)
231855S Needle Valve

231855S Needle Valve

£9.06 (£7.55 Excluding VAT at 20%)
690577 Needle Seat

690577 Needle Seat

£9.36 (£7.80 Excluding VAT at 20%)
494381 Carburettor Float

494381 Carburettor Float

£20.22 (£16.85 Excluding VAT at 20%)
281165S Float Bowl Gasket

281165S Float Bowl Gasket

£7.74 (£6.45 Excluding VAT at 20%)
692255 Washer

692255 Washer

£4.86 (£4.05 Excluding VAT at 20%)
692137 Intake gasket

692137 Intake gasket

£4.32 (£3.60 Excluding VAT at 20%)

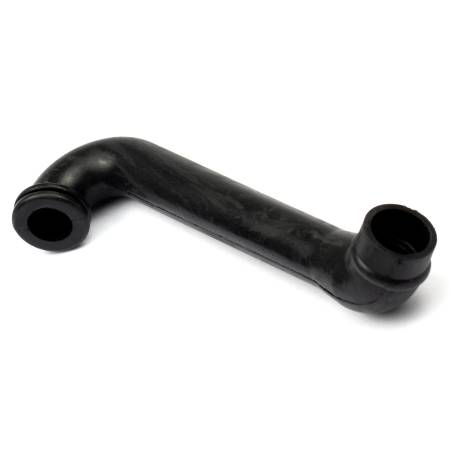

794683 Breather Pipe

794683 Breather Pipe

£9.72 (£8.10 Excluding VAT at 20%)

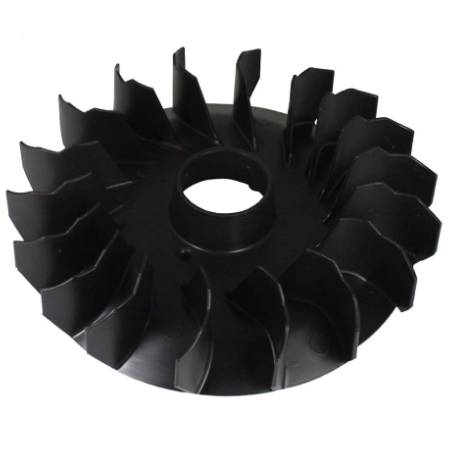

796201 Fan Kit

796201 Fan Kit

£54.78 (£45.65 Excluding VAT at 20%)
591606 Rewind Assembly

591606 Rewind Assembly

£53.58 (£44.65 Excluding VAT at 20%)
695129 Recoil Starter Pulley

695129 Recoil Starter Pulley

£35.58 (£29.65 Excluding VAT at 20%)
695131 Recoil Spring

695131 Recoil Spring

£15.06 (£12.55 Excluding VAT at 20%)
ST3 Starter Pawls and Plate

ST3 Starter Pawls and Plate

£24.42 (£20.35 Excluding VAT at 20%)
692188 Recoil Starter Rope - 4mm x 1.6m

692188 Recoil Starter Rope - 4mm x 1.6m

£7.92 (£6.60 Excluding VAT at 20%)
490652 Recoil Starter Grip/Handle

490652 Recoil Starter Grip/Handle

£7.08 (£5.90 Excluding VAT at 20%)
593934 Starter Motor (3 5/8

593934 Starter Motor (3 5/8" / 95mm Body. Metal Pinion Gear)

£167.82 (£139.85 Excluding VAT at 20%)
593935 Starter Pinion Gear - Metal (14 Tooth)

593935 Starter Pinion Gear - Metal (14 Tooth)

£28.92 (£24.10 Excluding VAT at 20%)
691265 Starter Drive 'C' Clip/Ring

691265 Starter Drive 'C' Clip/Ring

£4.80 (£4.00 Excluding VAT at 20%)

!!<>!!Associated special tools

691293 Brush Holder

691293 Brush Holder

£31.62 (£26.35 Excluding VAT at 20%)
691286 Metal Plate

691286 Metal Plate

£20.34 (£16.95 Excluding VAT at 20%)
691656 Starter Solenoid

691656 Starter Solenoid

£24.54 (£20.45 Excluding VAT at 20%)

Replacing a double pole solenoid?

692318 Ignition Switch

692318 Ignition Switch

£31.92 (£26.60 Excluding VAT at 20%)

Wiring details

691959 Ignition Key Set

691959 Ignition Key Set

£10.38 (£8.65 Excluding VAT at 20%)

Click here for profile shape pop-up

1714054SM Delta Ignition Key

1714054SM Delta Ignition Key

£4.86 (£4.05 Excluding VAT at 20%)

Click here for profile shape pop-up

272475S Rocker Cover Gasket

272475S Rocker Cover Gasket

£8.46 (£7.05 Excluding VAT at 20%)
691108 Cover bolt

691108 Cover bolt

£4.26 (£3.55 Excluding VAT at 20%)
690664 Screw

690664 Screw

£4.92 (£4.10 Excluding VAT at 20%)
692011 Push Rod

692011 Push Rod

£11.04 (£9.20 Excluding VAT at 20%)
692003 Push Rod

692003 Push Rod

£16.02 (£13.35 Excluding VAT at 20%)
690822 Push Rod Guide

690822 Push Rod Guide

£8.34 (£6.95 Excluding VAT at 20%)
794152 Gasket Set, Head

794152 Gasket Set, Head

£24.24 (£20.20 Excluding VAT at 20%)
796584 Head Gasket

796584 Head Gasket

£14.28 (£11.90 Excluding VAT at 20%)
794114 Head Gasket

794114 Head Gasket

£16.56 (£13.80 Excluding VAT at 20%)
690968 Seal

690968 Seal

£8.34 (£6.95 Excluding VAT at 20%)
691843 Valve Cap

691843 Valve Cap

£5.70 (£4.75 Excluding VAT at 20%)
796081 Intake Gasket

796081 Intake Gasket

£5.34 (£4.45 Excluding VAT at 20%)
84005207 Camshaft

84005207 Camshaft

£71.22 (£59.35 Excluding VAT at 20%)
697110 Crankcase Gasket

697110 Crankcase Gasket

£13.20 (£11.00 Excluding VAT at 20%)

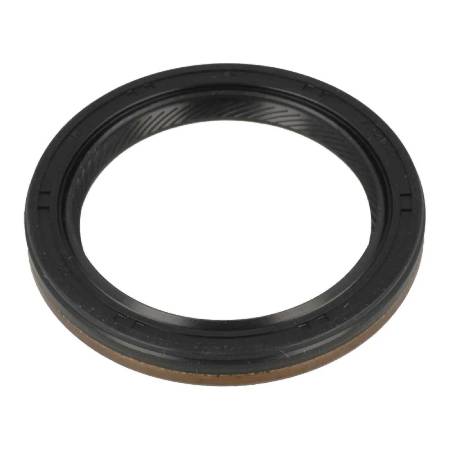

795387 Seal

795387 Seal

£8.10 (£6.75 Excluding VAT at 20%)
391086S Oil Seal (43mm x 30mm x 6.5mm)

391086S Oil Seal (43mm x 30mm x 6.5mm)

£5.28 (£4.40 Excluding VAT at 20%)
595304 Ignition Coil/Armature

595304 Ignition Coil/Armature

£57.72 (£48.10 Excluding VAT at 20%)
691909/692424 Spark Plug Terminal & Boot Kit

691909/692424 Spark Plug Terminal & Boot Kit

£11.76 (£9.80 Excluding VAT at 20%)
84003327 Ignition Spark Tester

84003327 Ignition Spark Tester

£21.95 (£18.29 Excluding VAT at 20%)
592831 Alternator - Dual Circuit

592831 Alternator - Dual Circuit

£62.52 (£52.10 Excluding VAT at 20%)
592829 Alternator - 5-9 Amp

592829 Alternator - 5-9 Amp

£51.18 (£42.65 Excluding VAT at 20%)
794360 Voltage Regulator

794360 Voltage Regulator

£51.96 (£43.30 Excluding VAT at 20%)

Typical Failure Symptoms Pop-up

592830 Alternator - 10-16 Amp

592830 Alternator - 10-16 Amp

£57.24 (£47.70 Excluding VAT at 20%)
845907 Voltage Regulator

845907 Voltage Regulator

£54.78 (£45.65 Excluding VAT at 20%)

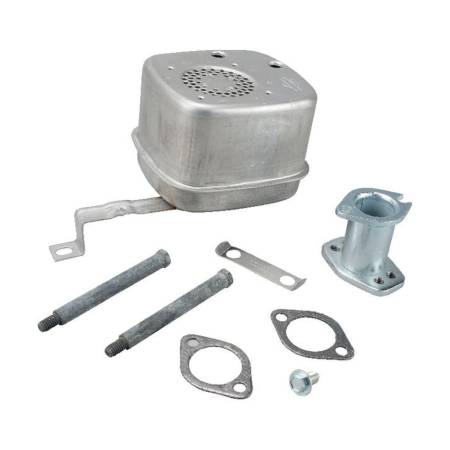

795998 Muffler #

795998 Muffler #

£76.62 (£63.85 Excluding VAT at 20%)
795036 Deflector Muffler

795036 Deflector Muffler

£9.60 (£8.00 Excluding VAT at 20%)
692236 Exhaust Gasket

692236 Exhaust Gasket

£4.98 (£4.15 Excluding VAT at 20%)
698941 Exhaust Screw

698941 Exhaust Screw

£4.86 (£4.05 Excluding VAT at 20%)
19203 Puller - Large

19203 Puller - Large

£13.97 (£11.64 Excluding VAT at 20%)
796335 Flywheel Key

796335 Flywheel Key

£3.54 (£2.95 Excluding VAT at 20%)
591757 Flywheel Key

591757 Flywheel Key

£3.96 (£3.30 Excluding VAT at 20%)
691483 1/4

691483 1/4" Key

£5.58 (£4.65 Excluding VAT at 20%)
0025X6MA Engine Mounting Bolt

0025X6MA Engine Mounting Bolt

£3.36 (£2.80 Excluding VAT at 20%)
