Product Description
Briggs & Stratton Commercial Power designs and manufactures robust, high performance engines. Premium-grade Vanguard® engines are application-engineered to power equipment that works for a living.

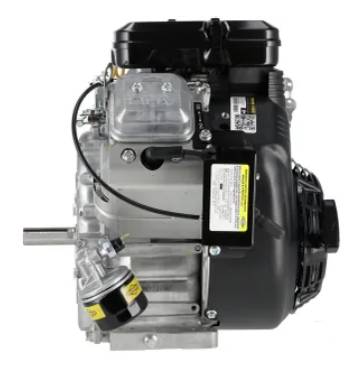

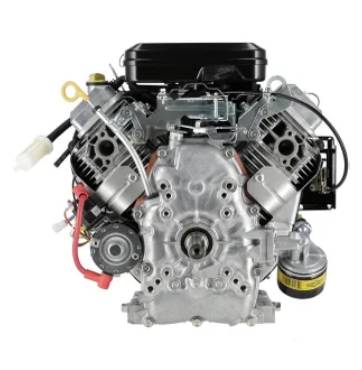

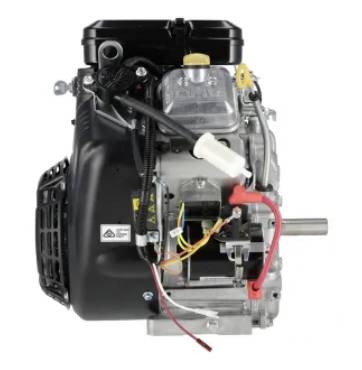

Model Number: 3564470048G1U0001
Series: Vanguard Twin OHV
Cylinder/s: Twin
Cylinder Type: Cast Iron Sleeved
Power: 18 HP Gross* (13.4 kW @ 3600 rpm**)
Capacity: 570 cm³/cc
Fuel type: Petrol (4-Stroke)
Cooling system type: Air
Crankshaft position: Horizontal
Crankshaft type: Straight
Crankshaft diameter: 25.4 mm (1")
Crankshaft length: 76mm (3")
Flywheel type: Heavy
Throttle type: Variable
Top No Load rpm: 3600
Recoil starter: Yes
Electric starter: Yes
Charging Circuit: 16 Amp Regulated
Fuel pump: Yes
Oil filter: Yes
Oil Alert: Yes
Muffler: No***
Fuel tank: No
Oil capacity: 1.7 ltr*
Dry weight: 33.6 Kg*
Dimensions: 318 mm x 410 mm x 438 mm*
Warranty: 3 Years Commercial (T's & C's apply)
* Approximately
** All power levels are stated gross kilowatt per SAE J1940 as rated by Briggs & Stratton
*** Muffler types are dependant on application, so if you also require a new muffler, please contact us for assistance.
FREE Engine Oil to commission the engine is included.
Always read owners manual prior to commissioning engine. Damage caused by improper installation are not warrantable.
Shipping restrictions may apply. Please contact us for confirmation if the required delivery destination is outside of the UK.
IMPORTANT NOTE: If you are not completely sure that this engine will suit your intended application, please contact us with your original engine details first, (in the case of Briggs, the Model, Type and Code numbers). One of our Briggs trained staff will then be able to confirm whether this engine is suitable, and if not, assist with identification of the correct engine for your requirements.
