104M020118H5YY0001 - 675EXi OHV Engine - Vertical Crankshaft = 25mm (1") x 62mm (2 7/16") - Fixed Speed #1

Product Description

Only 1 Available

Model Number: 104M020118H5YY0001

Series: 675EXi OHV
Cylinder/s: Single
Cylinder type: Aluminium
Power: 9.83 Nm @ 2600 rpm** / 7.25 lb/Ft
Capacity: 163 cm³/cc
Fuel type: Petrol (4-Stroke)
Cooling system type: Air
Crankshaft position: Vertical
Crankshaft type: Straight

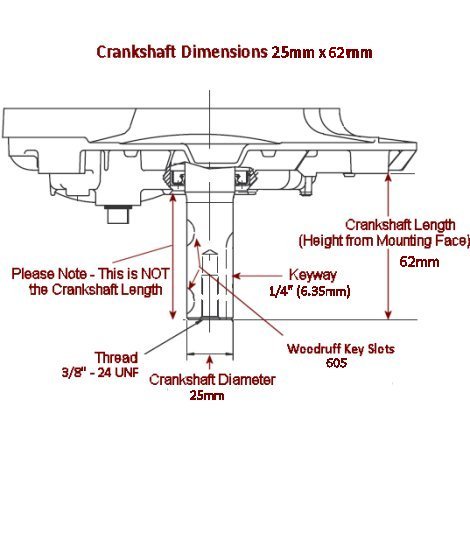

Crankshaft diameter: 25mm (1")
Crankshaft length: 62mm (2 7/16")
Flywheel type: Light
Flywheel brake: Yes
Governor type: Mechanical
Throttle type: Fixed speed (Can be converted to variable speed ***)
Top No Load rpm: 2900 +/- 100
Recoil starter: Yes
Electric starter: No
Priming System: Ready Start (Autochoke)
Fuel pump: No
Oil filter: No
Low oil cut off: No
Muffler: Yes (Super Lo-Tone)
Fuel tank: Yes
Fuel tank capacity: 1 ltr
Oil capacity: 0.47 ltr*
Dry weight: 8.5 Kg
Dimensions: 349 mm x 314 mm x 253mm*


* Approximately
** All torque levels are stated gross Nm per SAE J1940 as rated by Briggs & Stratton.
*** To convert to variable speed, use 1 x control bracket 596458 and 1 x screw 793480

FREE Engine Oil to commission the engine is included.

Always read owners manual prior to commissioning engine. Damage caused by improper installation are not warrantable.
