Product Description
The Briggs and Stratton 850PXi Series™ I/C® engines represent the ultimate durability package. These engines provide all the performance benefits of the E Series engine family and in addition deliver the extended durability professional users are looking for.
As an I/C engine, (Industrial/Commercial), this engine features a Cast Iron cylinder sleeve, this is designed to significantly enhance the longevity of the engine for those who use their equipment day-in and day-out.
Model Number: 123P020011H5YY0001
Series: 850PXi I/C OHV
Cylinder/s: Single
Cylinder type: Cast Iron Sleeved
Power: 11.53 Nm @ 2600 rpm** / 8.5lb/Ft
Capacity: 190 cm³/cc
Fuel type: Petrol (4-Stroke)
Cooling system type: Air
Crankshaft position: Vertical
Crankshaft type: Straight

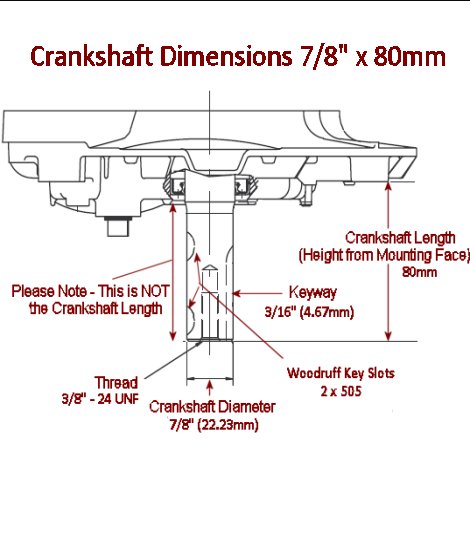

Crankshaft diameter: 22.2mm (7/8")
Crankshaft length: 80mm (3 1/8")
Flywheel type: Light
Flywheel brake: Yes
Governor type: Mechanical
Throttle type: Remote variable speed
Top No Load rpm: 2900 +/- 100
Recoil starter: Yes
Electric starter: No
Priming System: Ready Start (Autochoke)
Fuel pump: No
Oil filter: No
Low oil cut off: No
Muffler: Yes (Performance with tubular outlet)
Fuel tank: Yes
Fuel tank capacity: 1 ltr
Oil capacity: 0.6 ltr*
Dry weight: 10.8 Kg
Dimensions: 399 mm x 338 mm x 253mm*
Replaces: 123P020014H5YY0001
* Approximately
** All torque levels are stated gross Nm per SAE J1940 as rated by Briggs & Stratton.
FREE Engine Oil to commission the engine is included.
Always read owners manual prior to commissioning engine. Damage caused by improper installation are not warrantable.
