Product Description

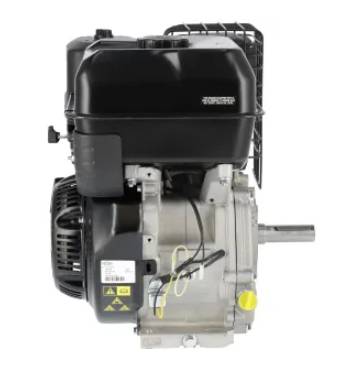

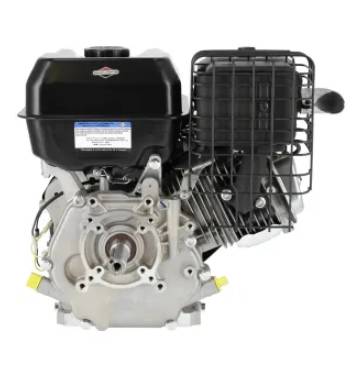

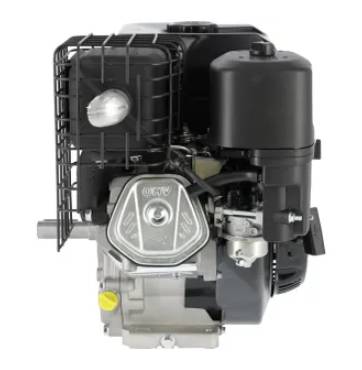

The Briggs & Stratton XR1450 general purpose horizontal shaft engines are built to be tough, reliable and efficient. It's designed for frequent use in demanding work environments.
Model Number: 19N1320237H5CG7001
Series: XR1450 OHV
Cylinder/s: Single
Cylinder type: Cast Iron Sleeved
Power: 10 HP Gross* (7.5 kW @ 3600 rpm**)
Capacity: 306 cm³/cc
Fuel type: Petrol (4-Stroke)
Cooling system type: Air
Crankshaft position: Horizontal
Crankshaft type: Straight (Forged Iron)
Crankshaft diameter: 25.4mm (1")
Crankshaft length: 88.5mm (3 1/2")
Flywheel type: Heavy
Throttle type: Variable
Recoil starter: Yes
Electric starter: Np
Priming System: Manual Choke
Fuel pump: No
Oil filter: No
Oil Alert: Yes
Muffler: Yes (Lo-Tone)
Fuel tank: Yes
Fuel tank capacity: 5.3 ltr
Oil capacity: 1.1 ltr*
Dry weight: 26 Kg
Dimensions: 323 mm x 438 mm x 424 mm*
Warranty: 2 Years Consumer and Commercial (T's & C's apply)
* Approximately
** All power levels are stated gross kilowatt per SAE J1940 as rated by Briggs & Stratton
FREE Engine Oil to commission the engine is included.
Always read owners manual prior to commissioning engine. Damage caused by improper installation are not warrantable.
Shipping restrictions may apply. Please contact us for confirmation if the required delivery destination is outside of the UK.
IMPORTANT NOTE: If you are not completely sure that this engine will suit your intended application, please contact us with your original engine details first, (in the case of Briggs, the Model, Type and Code numbers). One of our Briggs trained staff will then be able to confirm whether this engine is suitable, and if not, assist with identification of the correct engine for your requirements.
