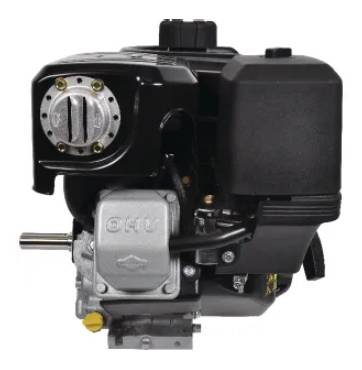

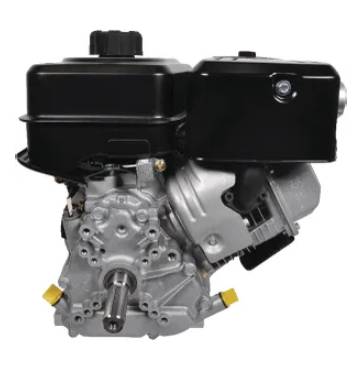

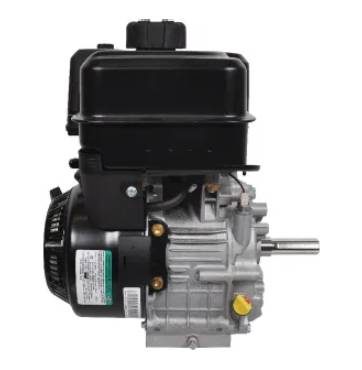

Product Description
Model Number: 19L2320314F1AX7001
Series: Vanguard OHV
Cylinder/s: Single (Cast Iron Sleeve)
Power: 10 HP Gross* (7.5 kW @ 3600 rpm**)
Capacity: 305 cm³/cc
Fuel type: Petrol (4-Stroke)
Cooling system type: Air
Crankshaft position: Horizontal
Crankshaft type: Straight
Crankshaft diameter: 25.4mm (1")
Crankshaft length: 92.86mm (3 21/32")
Flywheel type: Heavy
Top No Load rpm: 3600
Recoil starter: Yes
Electric starter: No
TransportGuard: Yes
Oil filter: No
Oil Alert: Yes
Muffler: Yes (Super Lo-Tone)
Fuel tank: Yes
Fuel tank capacity: 3.6 ltr
Oil capacity: 0.8 ltr*
Dry weight: 25.9 Kg
Dimensions: 314 mm x 422 mm x 403mm*
Warranty: 3yrs Commercial (T&C's apply)
TransportGuard™
One of the most common issues with petrol powered rental equipment is the operator failing to shut off the fuel supply before transporting the equipment. Failure to shut off the fuel supply results in costly oil and fuel dilution. With the innovative TransportGuard™ system, exclusive to VANGUARD® 3,7 - 10,4 Gross Kilowatt engines, simply move the TransportGuard™ lever to shut off both engine and fuel supply simultaneously. This system eliminates operator error and ensures trouble free equipment transportation. Problem solved.
* Approximately
** All torque levels are stated gross Nm per SAE J1940 as rated by Briggs & Stratton.
FREE Engine Oil to commission the engine is included.
Always read owners manual prior to commissioning engine. Damage caused by improper installation are not warrantable.
Shipping restrictions may apply. Please contact us for confirmation if the required delivery destination is outside of the UK.
IMPORTANT NOTE: If you are not completely sure that this engine will suit your intended application, please contact us with your original engine details first, (in the case of Briggs, the Model, Type and Code numbers). One of our Briggs trained staff will then be able to confirm whether this engine is suitable, and if not, assist with identification of the correct engine for your requirements.
