Briggs and Stratton Large Single Cylinder Vanguard Horizontal Engine Spare Parts

Briggs&Stratton uk | Horizontal Single Cylinder 6 HP and Above Engine Spare Parts |  Briggs and Stratton Large Single Cylinder Vanguard Horizontal Engine Spare Parts

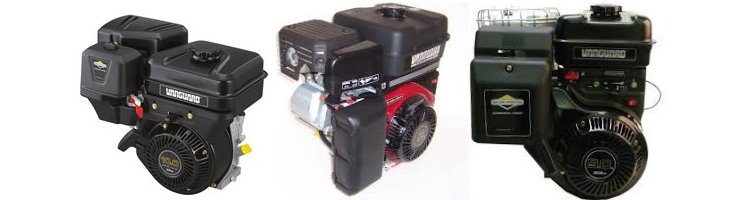

Large Vanguard Single Horizontal Click Engine Image for more Information about this Engine Group

These engines are usually to be found on a variety of industrial and utility applications such as Tillers, Rotovators,
Large Cylinder Mowers, Cement Mixers, Generators, Pumps, Compressors, Winches etc.

They are overhead valve with the spark plug set deep to one side or the top of a rocker cover.

The fuel tank will be mounted directly on top.

They generally have a "Vanguard" sticker fairly prominently placed,
together with their Horse Power number - 8HP, 9HP, 10HP, 11HP or 13HP
The cylinder and piston are at 45 degrees to the vertical giving the engine a compact look

The pull start will be on the side with the crankshaft emerging horizontally on the opposite side.

The Model, Type and Code numbers are stamped into the side or top edge of the rocker cover or
are etched into a narrow aluminium plate that is rivited to the cowling beside the starter housing
The Model number will begin with 16,18,19,23 or 24

Briggs and Stratton Single Cylinder Vanguard Repair Manual 272147


Quantity:

Briggs and Stratton Single Cylinder Vanguard Repair Manual 272147


Price: 18.99

Approx shipping weight 680g

Repair manual for all single cylinder Vanguard engines

Covers all you need to know!


Fuel Fit Additive 992380


Quantity:

Fuel Fit Additive 992380


Price: 4.19 (Including VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc

100 ml, treats 10 litres of fuel


Spark Plug 992304


Quantity:

Spark Plug 992304


Price: 4.39 (Including VAT at 20%)

Approx shipping weight 50g

RC12YC Spark plug for all OHV engines other than the Vanguard Twin engines listed for 992306 bolow


992355 (was 6095E) Spark Plug Wrench


Quantity:

992355 (was 6095E) Spark Plug Wrench


Price: 6.00 (Including VAT at 20%)

Approx shipping weight 120g

16mm/19mm Spark plug box wrench for 992304 & 992306 spark plugs


710634 Boot


Quantity:

710634 Boot


Price: 9.36 (Including VAT at 20%)

Approx shipping weight 10g

Spark plug boot for Vanguard horizontal crankshaft engines


Throttle control 992015


Quantity:

Throttle control 992015


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)


Throttle control 992016


Quantity:

Throttle control 992016


Price: 8.22 (Including VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)


Genuine Briggs Spares Air Filter 491588S


Quantity:

Genuine Briggs Spares Air Filter 491588S


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 40g

Paper air filter for many engines
Approx 13cm x 11.5cm


Pre filter 491435S


Quantity:

Pre filter 491435S


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre filter for 491588 paper filter fitted to horizontal crankshaft engines


710266 Air Filter Cartridge


Quantity:

710266 Air Filter Cartridge


Price: 14.04 (Including VAT at 20%)

Approx shipping weight 170g

Rectangular paper air filter cartridge for 9 HP and 11HP Vanguard OHV horizontal crankshaft engine


710268 Pre Filter


Quantity:

710268 Pre Filter


Price: 8.88 (Including VAT at 20%)

Approx shipping weight 15g

Foam pre filter for 710266 filter cartridge


710226 Base #2


Quantity:

710226 Base #2


Price: 12.54 (Including VAT at 20%)

Approx shipping weight 220g

Air filter base for 710266 Filter


491384 Air Filter Cartridge


Quantity:

491384 Air Filter Cartridge


Price: 13.38 (Including VAT at 20%)

Approx shipping weight 120g

Paper air filter cartridge for selected OHV crankshaft engines
Approx 16cm x 7.5cm. Paper folds run widthways.


Pre filter 492889


Quantity:

Pre filter 492889


Price: 5.58 (Including VAT at 20%)

Approx shipping weight 10g

Foam pre filter for 491348 air filter cartridge

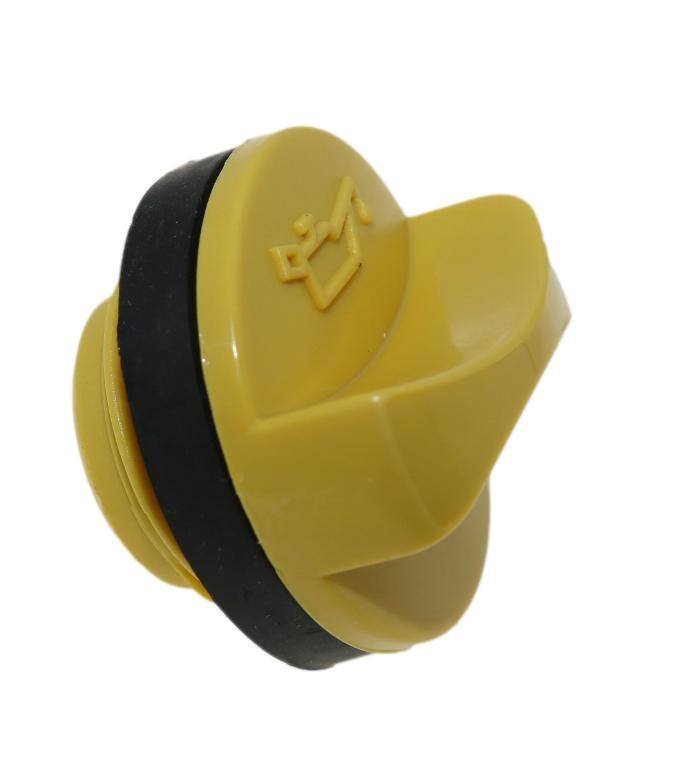

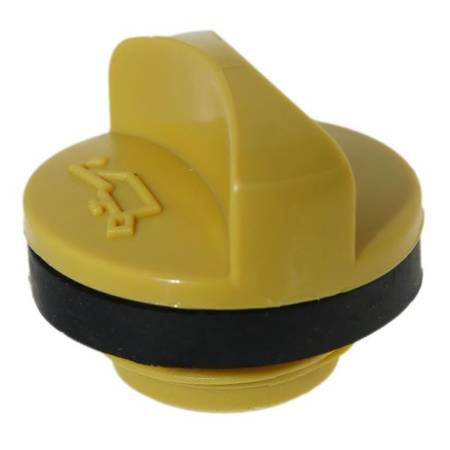

809500 Oil Filler Cap


Quantity:

809500 Oil Filler Cap


Price: 9.30 (Including VAT at 20%)

Approx shipping weight 20g

Oil filler cap for many Vanguard engines. Includes seal
Thread diameter approx 25mm

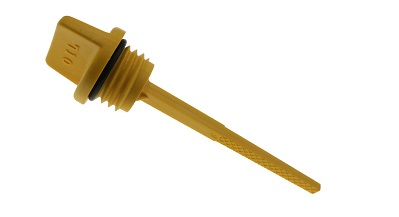

715589 Dipstick


Quantity:

715589 Dipstick


Price: 5.88 (Including VAT at 20%)

Approx shipping weight 20g

Oil dipstick/filler cap for 180000 9HP Vanguard
Approx 11.5cm overall length with 23mm diameter thread
Includes seal


491367S Fuel Cap


Quantity:

491367S Fuel Cap


Price: 11.64 (Including VAT at 20%)

Approx shipping weight 80g

Fuel Cap for 160000 and 180000 9HP Vanguard engine with plastic fuel tank


691370 Strainer


Quantity:

691370 Strainer


Price: 12.12 (Including VAT at 20%)

Approx shipping weight 20g

Fuel strainer for plastic fuel tank


710490 Fuel Cap


Quantity:

710490 Fuel Cap


Price: 7.38 (Including VAT at 20%)

Approx shipping weight 95g

Fuel cap for many Vanguard horizontal crankshaft engines with metal fuel tank
Tank thread outside diameter approx 55mm


710065 Strainer


Quantity:

710065 Strainer


Price: 12.24 (Including VAT at 20%)

Approx shipping weight 60g

Fuel strainer for Vanguard horizontal crankshaft engines
Approx 70mm long to fit tank opening 42mm diameter


698183 Fuel Tap


Quantity:

698183 Fuel Tap


Price: 6.12 (Including VAT at 20%)

Approx shipping weight 15g

In line fuel shut off valve supplied with 2 x 95162 tube clamp


716111 (715224) Fuel Tap


Quantity:

716111 (715224) Fuel Tap


Price: 23.52 (Including VAT at 20%)

Approx shipping weight 70g

Fuel tap with filter bowl. For many Vanguard horizontal crankshaft engines.
Inlet and outlet pipes parallel with each other


395051R Briggs and Stratton Fuel Tube


Quantity:

395051R Briggs and Stratton Fuel Tube


Price: 3.66 (Including VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


710075 Fuel Tube clamp


Quantity:

710075 Fuel Tube clamp


Price: 2.88 (Including VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp
Fits 11mm O/D fuel tube 395051


691038 Fuel Tube Clamp - Black


Quantity:

691038 Fuel Tube Clamp - Black


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 95162)


791850 Fuel Tube Clamp - Green


Quantity:

791850 Fuel Tube Clamp - Green


Price: 2.82 (Including VAT at 20%)

Approx shipping weight 10g

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)


298090S Fuel Filter


Quantity:

298090S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

Red in line fuel filter for gravity fed fuel systems


394358S Fuel Filter


Quantity:

394358S Fuel Filter


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 10g

White 75 micron in line fuel filter for pumped or higher pressure gravity fuel systems


691035 Fuel Filter


Quantity:

691035 Fuel Filter


Price: 7.50 (Including VAT at 20%)

Approx shipping weight 15g

Paper type in line fuel filter fitted in many pumped fuel systems
40 microns


808656 Fuel Pump


Quantity:

808656 Fuel Pump


Price: 35.52 (Including VAT at 20%)

Approx shipping weight 100g

808656 Plastic fuel pump. Approx 50mm diameter x 25mm. 3 connectors
Replaces older square aluminium pump


710235 Gasket


Quantity:

710235 Gasket


Price: 4.32 (Including VAT at 20%)

Approx shipping weight

Air filter gasket. For 180000 Series Vanguard engines
Bolt hole centres approx 47mm apart

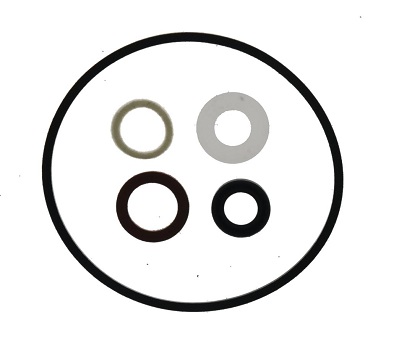

492281 Gasket Set


Quantity:

492281 Gasket Set


Price: 28.44 (Including VAT at 20%)

Approx shipping weight 10g

Carburettor gasket set. For Vangaurd model 160000 9HP Vanguard Engine


492188 Float Valve


Quantity:

492188 Float Valve


Price: 23.04 (Including VAT at 20%)

Approx shipping weight 5g

Float needle valve for Vangaurd model 160000 9HP Vanguard engine


231855S Needle Valve


Quantity:

231855S Needle Valve


Price: 3.84 (Including VAT at 20%)

Approx shipping weight 5g

Float needle. For Walbro LMT carburettors fitted to later 10HP engines.
This needle has a rubberised "vitron" point. Note, some early carburettors have a plain metal needle. The two are not interchangeable.


712001 Needle and Gasket Kit


Quantity:

712001 Needle and Gasket Kit


Price: 17.52 (Including VAT at 20%)

Approx shipping weight 5g

Viton tipped inlet needle valve for 240000 13HP Vanguard engine
Needle has sping loaded pin in base
Includes bowl seal (approx 50mm diameter) and Washer (8mm I/D)


281165S Carburetor Bowl Seal


Quantity:

281165S Carburetor Bowl Seal


Price: 6.18 (Including VAT at 20%)

Approx shipping weight 5g

Carburetor rubber bowl seal for Walbro carburettor (LMT on body)
Approx 5cm outside diameter


692255 Washer


Quantity:

692255 Washer


Price: 3.60 (Including VAT at 20%)

Approx shipping weight 5g

Fibre carburetor bowl lower seal washer for walbro carburettor (LMT on body)
Approx 8mm inside diameter


494381 Float


Quantity:

494381 Float


Price: 15.36 (Including VAT at 20%)

Approx shipping weight 10g

Carburettor float


710557 Gasket


Quantity:

710557 Gasket


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 5g

Air cleaner/intake gasket for 230000 11HP and 240000 13HP Vanguard engines
Bolt hole centres approx 54mm apart


695002 Rope


Quantity:

695002 Rope


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 40g

Starter rope 5mm x 2.4m long white


490652 Starter Grip


Quantity:

490652 Starter Grip


Price: 5.22 (Including VAT at 20%)

Approx shipping weight 55g

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871

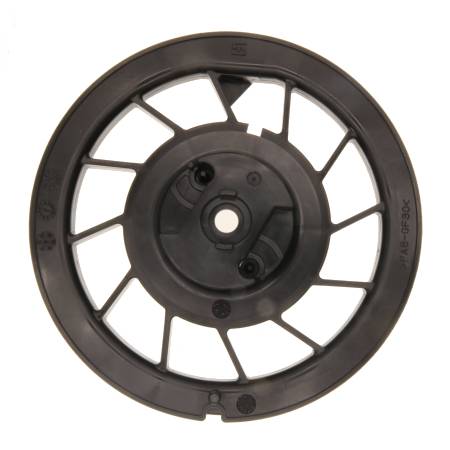

692085 Vanguard Recoil Pulley


Quantity:

692085 Vanguard Recoil Pulley


Price: 38.88 (Including VAT at 20%)

Approx shipping weight 185g

Recoil pulley for 9HP and over Vanguard engines which are fitted with plastic pawls and plate.
(approx 16cm diameter)


808166 Pawl Kit


Quantity:

808166 Pawl Kit


Price: 17.94 (Including VAT at 20%)

Approx shipping weight 10g

Starter pawl kit. Includes 2 x pawl and spring for starter that use 16cm diameter 692085 Pulley

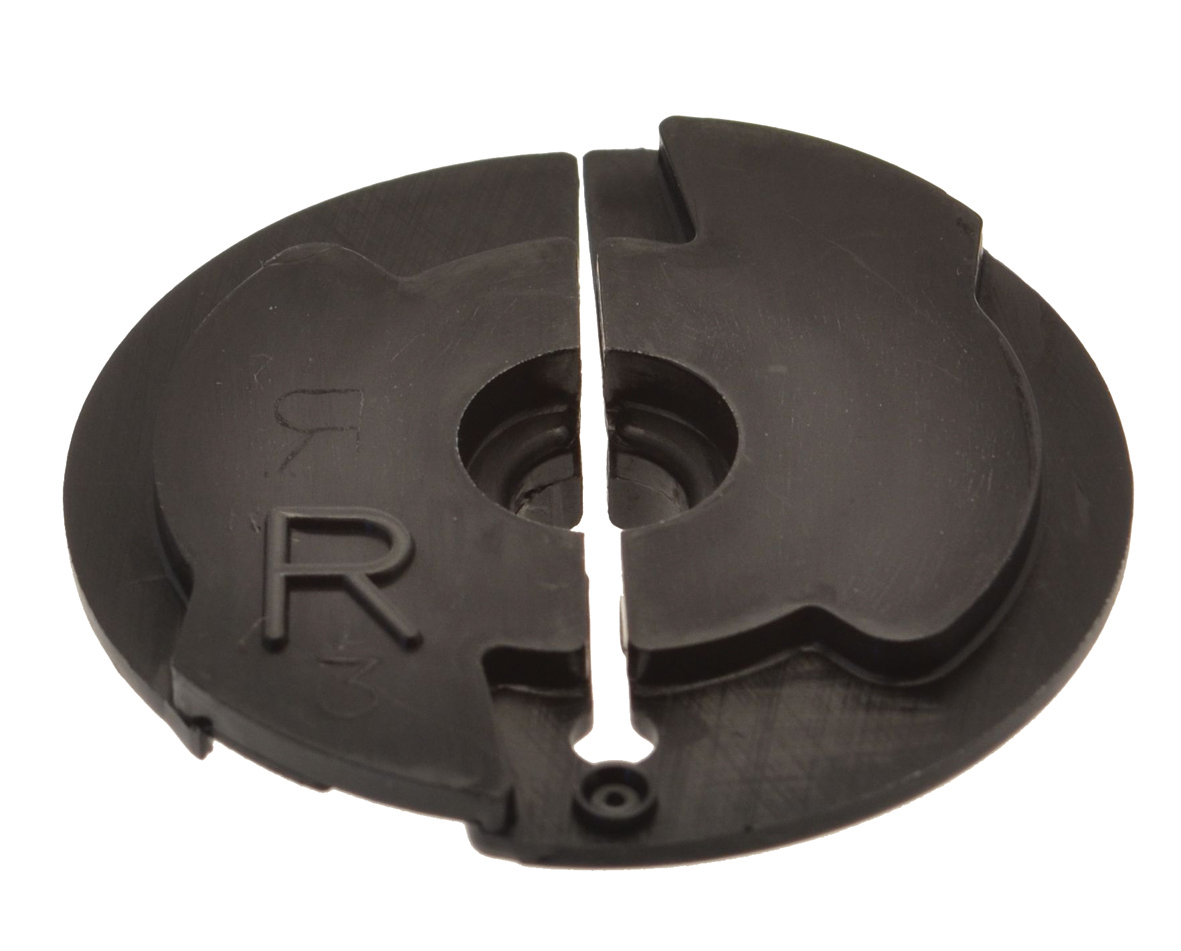

691529 Plate


Quantity:

691529 Plate


Price: 12.60 (Including VAT at 20%)

Approx shipping weight 25g

Starter pawl friction plate
Approx 51mm diameter

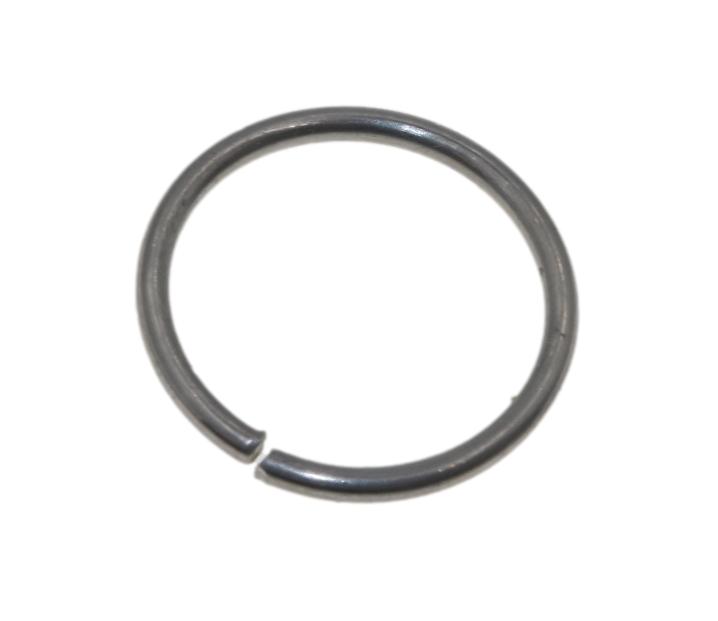

690875 Retainer


Quantity:

690875 Retainer


Price: 3.12 (Including VAT at 20%)

Approx shipping weight 5g

"C" ring retainer for 691529 Plate


695708 Starter Gear


Quantity:

695708 Starter Gear


Price: 6.84 (Including VAT at 20%)

Approx shipping weight 20g

16 tooth plastic starter gear for most starter motors


691641 Pin


Quantity:

691641 Pin


Price: 3.18 (Including VAT at 20%)

Approx shipping weight 10g

Retaining pin. For pin retained started gears

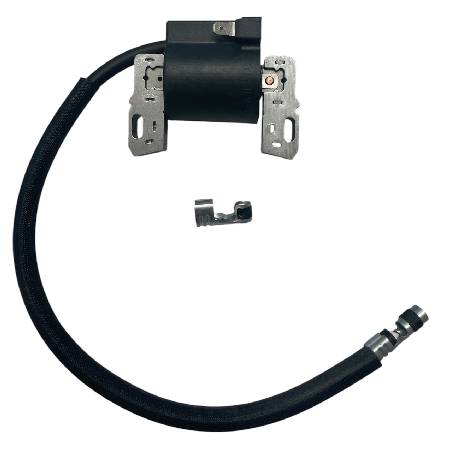

591459 (was 492341) Ignition Armature


Quantity:

591459 (was 492341) Ignition Armature


Price: 34.32 (Including VAT at 20%)

Approx shipping weight 380g

Electronic ignition armature magneto coil for 160000 9HP, 230000 11HP and 240000 13HP Vangaurd engines
Mounting hole centres approx 6.4cm apart


692390 Stop Wire


Quantity:

692390 Stop Wire


Price: 3.42 (Including VAT at 20%)

Approx shipping weight 20g

Stop wire. Approx 42cm long
Can also be used on old points ignition systems by cutting off the spade connector.


691656 Starter Solenoid


Quantity:

691656 Starter Solenoid


Price: 18.18 (Including VAT at 20%)

Approx shipping weight 200g

691656 Starter Solinoid, single poll
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton
This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer


692318 Ignition Switch


Quantity:

692318 Ignition Switch


Price: 21.66 (Including VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. (see pop up link below for shape) Fits most electric start machines


711764 Rocker Switch


Quantity:

711764 Rocker Switch


Price: 11.22 (Including VAT at 20%)

Approx shipping weight 10g

Rocker switch for 24 Series Vanguard Engines. Fits hole in panel approx 19mm x 12mm
Two terminals


272067 Head Gasket


Quantity:

272067 Head Gasket


Price: 10.92 (Including VAT at 20%)

Approx shipping weight 20g

Head gasket for 160000 9HP Vanguard engine
Bore diameter approx 76.2mm


272063 Rocker Gasket


Quantity:

272063 Rocker Gasket


Price: 4.20 (Including VAT at 20%)

Approx shipping weight 20g

Rocker cover gasket for 160000 9HP Vanguard engine


710205 Head Gasket


Quantity:

710205 Head Gasket


Price: 9.84 (Including VAT at 20%)

Approx shipping weight

Metal head gasket for 180000 9HP Vanguard engine
Bore diameter approx 82mm


710206 Rocker Cover Gasket


Quantity:

710206 Rocker Cover Gasket


Price: 3.78 (Including VAT at 20%)

Approx shipping weight 15g

Rocker cover gasket for 180000 9HP Vanguard OHV engines


710539 Head Gasket


Quantity:

710539 Head Gasket


Price: 14.94 (Including VAT at 20%)

Approx shipping weight 30g

Metal cylinder head gasket for 230000 11HP and 240000 13HP Vanguard engine
Bore diameter approx 89mm


710377 Rocker Chest Gasket


Quantity:

710377 Rocker Chest Gasket


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 50g

Rocker valve cover gasket to fit 11HP and 13HP Vanguard engine


291675S Oil Seal


Quantity:

291675S Oil Seal


Price: 4.26 (Including VAT at 20%)

Approx shipping weight 15g

PTO and flywheel side oil seal. For model 230000 11HP and 240000 13HP Vanguard engine.
O/D approx 48mm I/D approx 34mm


692304 Muffler


Quantity:

692304 Muffler


Price: 31.14 (Including VAT at 20%)

Approx shipping weight 800g

Exhaust muffler for 160000 Vanguard engines that are fitted with 90 degree bend adaptor/manifold (adaptor no longer available)
Includes bolts, lockplate and gasket
Approx 10cm Square x 7cm Deep


692237 Exhaust Gasket


Quantity:

692237 Exhaust Gasket


Price: 4.98 (Including VAT at 20%)

Approx shipping weight 5g

Exahust gasket for 160000 Vanguard engine
Bolt hole centres approx 40mm apart


796956 (was 393757) Deflector


Quantity:

796956 (was 393757) Deflector


Price: 6.48 (Including VAT at 20%)

Approx shipping weight 80g

Exhaust deflector. Includes screws.
Screw hole centres diameter approx 65mm


795036 (was 393761) Deflector Muffler


Quantity:

795036 (was 393761) Deflector Muffler


Price: 8.10 (Including VAT at 20%)

Approx shipping weight 75g

Exhaust deflector for 230000 11HP and 240000 13HP Vanguard engines
Includes screws


710250 Gasket Exhaust


Quantity:

710250 Gasket Exhaust


Price: 7.20 (Including VAT at 20%)

Approx shipping weight 10g

Exhaust Gasket for 180000, 230000 and 240000 Vangard engines
Bolt hole centres approx 55mm apart


19203 Puller - Large


Quantity:

19203 Puller - Large


Price: 10.97 (Including VAT at 20%)

Approx shipping weight 230g

Flywheel puller for larger engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets


222698S Briggs & Stratton Spare Parts Flywheel key


Quantity:

222698S Briggs & Stratton Spare Parts Flywheel key


Price: 2.52 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm


710037 Flywheel Key


Quantity:

710037 Flywheel Key


Price: 5.64 (Including VAT at 20%)

Approx shipping weight 5g

Flywheel woodruff key for some Vanguard horizontal engines
Approx 4.5mm thick x 15mm long half moon


691483 1/4


Quantity:

691483 1/4" Key


Price: 4.32 (Including VAT at 20%)

Approx shipping weight 20g

1/4" Square Pulley key. Approx 39mm long


Unlisted parts page

Briggs&Stratton uk | Horizontal Single Cylinder 6 HP and Above Engine Spare Parts |  Briggs and Stratton Large Single Cylinder Vanguard Horizontal Engine Spare Parts

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
