A selection of the more common specialist service and repair tools.The tools catalogue details those not shown here.
OUT OF STOCK
Repair manual for all single cylinder side valve engines built after 1981Covers all you need to know!
Repair manual for all single cylinder OHV engines other than Vanguard.(Intek, Diamond, Europa etc.)For Vanguard engines order 272147Covers all you need to know!
Click for more Information
Repair manual for all single cylinder Vanguard enginesCovers all you need to know!
DOV repair manual
Complete repair manual for all Vanguard V-Twin enginesCovers everything you need to know!
Complete repair manual for all Side ValveTwin enginesCovers everything you need to know!
Repair manual for Intek V-Twin overhead valve enginesCovers everything you need to know!
Repair manual for engines dating 1919 to 1981Includes Cast iron models A to ZZ and 5's to 320000Aluminium engines 6B, 8B and 60000 to 253400
How old is my engine?
Briggs & Stratton 2 cycle engine repair manual
Small engine text book, B.Radcliffe, D.RoarkHardbackExplains in depth, the fundemental principals of small engine operation, design and repair using concise text, detailed illustrations and practical applications2nd edition which includes all that is covered in the acclaimed 1st edition, plus updated and expanded coverage of;Two stroke engines, turbo deisel engines, LPG fueled engines, outdoor power equipment industry data.Also includes a comprehensive CD ROM
Engine failure analysis bookletDetailed examination of major engine failures with accompanying close up photographs and diagramsAn excellent insight into the operating stresses endured by engine components and what causes them to fail
Tips and tools bookVarious tips and improvised tools from authorised service dealers around the world
Oil drain pump kit. Includes vacuum pump, oil container, tubing etc.Allows draining oil without tipping machine.
Walk behind mower cover.Protects against most weather conditions.Fits walk behind mowers up to 22"Width 55cmLength 142cmHeight to handlebar 119cm
Ride on mower/garden tractor coverProtects against most weather conditions.Width 100cmLength 264cmHeight 130cm
Extended oil drain pipe kitAllows easier oil draining away from bodywork etc.Includes 796530 drain pipe and 796532 ConnectorPipe can be clipped up out of the way when not in useCan be retro fitted to any engine with 3/8" Pipe thread (approx 17mm thread outside diameter)
Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol enginesPrevents fuel deterioration during periods of non-use and generally aids engine efficiencyEssential for correct winter storage of lawnmowers etc.100 ml, treats 10 litres of fuel

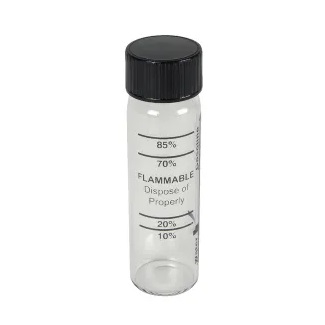

Gasahol tester bottle for testing ethanol levels in fuel
Click here for Ethanol Explained
This nifty little tool enables fuel line to be removed easily and without fear of damage
19mm/21mm Spark plug box wrench for 992041 spark plug
16mm/19mm Spark plug box wrench for 491055E spark plug
Fix A Thread insert fitting kit for M14 x 1.25 spark plug threadIncludes inserts
Torx driver set
Flywheel puller for small enginesDistance between outer hole centres approx 40mmIf your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)
Flywheel puller for mid range enginesDistance between outer hole centres approx 51mmIf your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)
Flywheel puller for larger enginesDistance between outer hole centres approx 72mmIncludes long and short bolt setsIf your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)
Nut, crankshaft/flywheelRequired for puller use on engines which have a square drive rewind starter clutch
Flywheel puller and flywheel holder for 450E, 500E, 550E, 600E & 575EX and 850 series engines.Holds flywheel stationary to allow removal and re-fitting of flywheel bolt and pulls flywheel off crankshaft.
Large heavy duty strap wrench. To hold flywheel whilst loosening/torquing nutForged handle approx 40cm long for achieving high torque with easeSuits all enginesReplaces 19167 flywheel holder

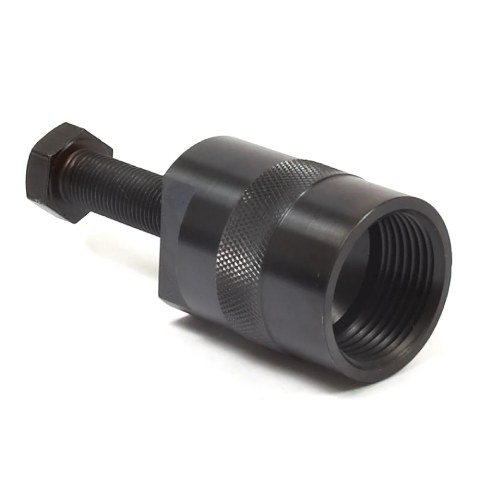

Older type starter clutch removal toolSits over the clutch to enable standard socket set fitting
Ignition spark testerTests the ignition system for efficiencyFor all engines

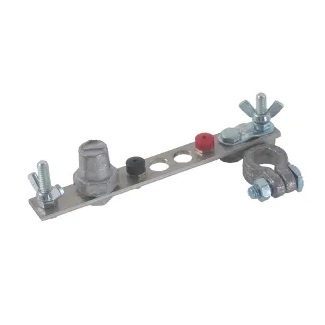

DC Shunt. For 12v battery charging and starter load diagnosisWorks with any digital multimeter with a millivolt scale
Click for more information about this item
Starter motoer C Clip removal tool
Starter motor 'c' ring fitting tool

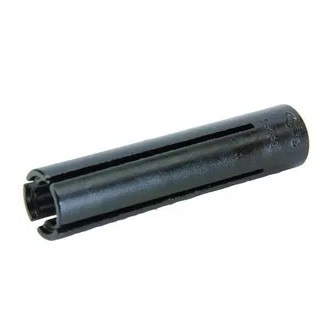

Primer bulb removal tool. Suits all Briggs and stratton prime start engines

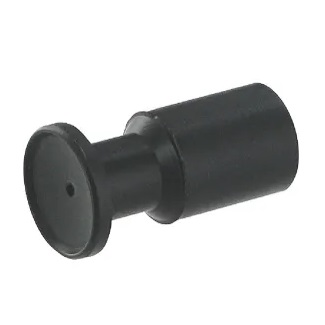

Primer bulb installation tool
Small carburettor adjustment and jet removal screwdriver.Parallel flat approx 5mm wide
Large carburettor adjustment and jet removal screwdriverParallel flat approx 6.5mm wide
Otoscope for inspection of carburettor passages, jetting etc.3x minimum magnification, push button light switch.Just like the doc uses to peer into your ears.
RPM tachometer to accurately set engine speedEasy to use and compact. Complete with instructions and walletSuits any engine
Tang bender for adjusting engine speedReaches into awkward brackets etc.
Valve spring compressorSuits all side valve engine sizes
Basic lever type valve compressor for larger engines
Quality rubber sucker type valve lapping tool. Includes 2 sizes of sucker and carry pouch

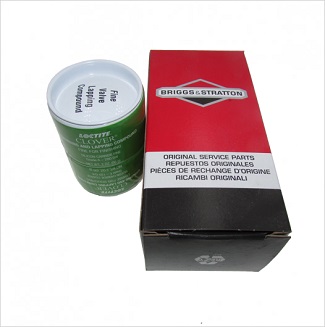

Valve lapping compoundContains both coarse and fineCorrect grade for all Briggs and Stratton engines

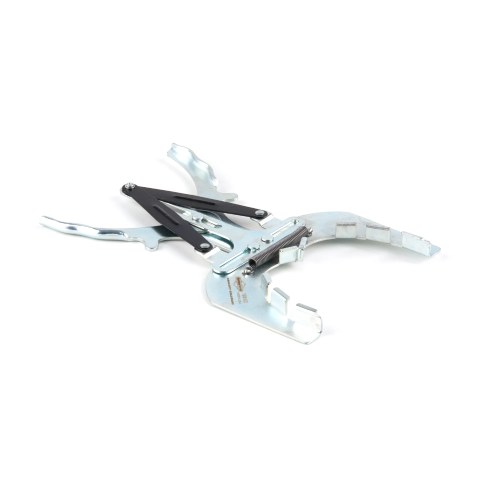

Piston ring expander

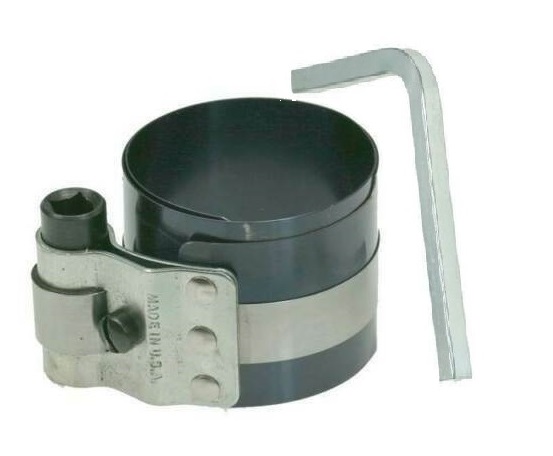

Piston ring compressor. Suits pistons up to 2 1/2" diameter

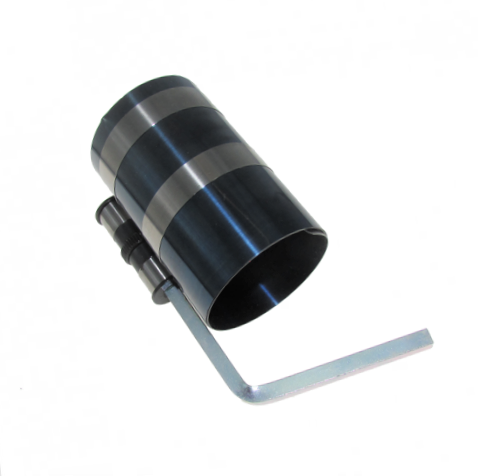

Piston ring compressor. Suits pistons over 2 1/2" diameter

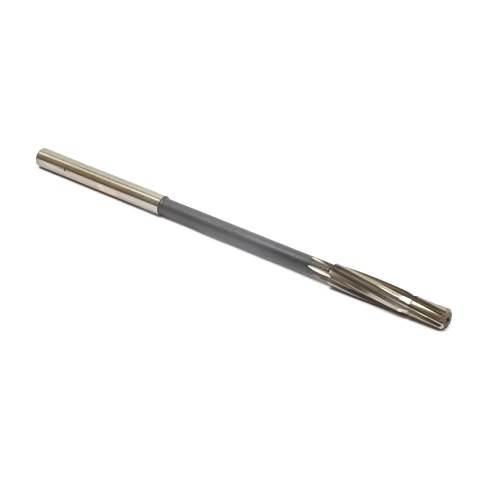

Valve guide tool kit
Valve guide service tool kit for 1/4" guides.Use 63709 bushing when repairing plain aluminium unbushed guides.
