Briggs and Stratton Twin Cylinder Side Valve (L-Head/Flat Twin/Opposed Twin) Horizontal Engine Parts

Briggs&Stratton uk | Briggs and Stratton Twin Cylinder Horizontal Engine Parts |  Briggs and Stratton Twin Cylinder Side Valve (L-Head/Flat Twin/Opposed Twin) Horizontal Engine Parts

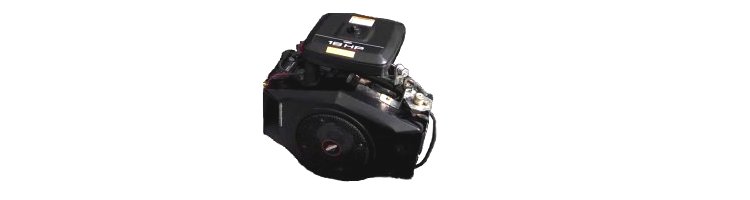

Side Valve Twin Horiz


This series of engines are usually to be found on a variety of industrial applications such as Generators, Pumps, Compressors, Winches,
Diamond Cutters, Floor Cleaners, Stump Grinders etc.

They have an opposed twin cylinder arrangement with the air filter sat on top between the cylinders.

They are side valve with the spark plugs set near the centre of the flat cylinder heads.

The fuel tank will usually be remote (fitted away for the engine).

If there is a pull start, this will be on the side, with the crankshaft emerging horizontally on the opposite side.
Electric start only versions have a flat mesh covering the flywheel on the side. There is also an option for a drive shaft extension on the flywheel side.

The Model, Type and Code numbers are either stamped into the pressed steel engine cowling at one end or along one of the sides.
Some have them on a small aluminium plate rivited to the top of the cowling.
The Model number will begin either 40 or 42.

271172 Briggs & stratton Twin cylinder Side Valve Repair Manual


Quantity:

271172 Briggs & stratton Twin cylinder Side Valve Repair Manual

Price: 18.99

Approx shipping weight 410g

Complete repair manual for all Side ValveTwin engines
Covers everything you need to know!


992380 Fuel Fit Additive


Quantity:

992380 Fuel Fit Additive

Price: 4.19 (3.49 Excluding VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc

100 ml, treats 10 litres of fuel


992300C Spark Plug


Quantity:

992300C Spark Plug

Price: 4.39 (3.66 Excluding VAT at 20%)

Approx shipping weight 50g

Short reach spark plug for all Briggs and Stratton side valve engines


992356 Spark Plug Wrench


Quantity:

992356 Spark Plug Wrench

Price: 6.12 (5.10 Excluding VAT at 20%)

Approx shipping weight 120g

19mm/21mm Spark plug box wrench for 992041 spark plug


992015 Throttle control


Quantity:

992015 Throttle control

Price: 17.48 (14.57 Excluding VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)


992016 Throttle control


Quantity:

992016 Throttle control

Price: 12.50 (10.42 Excluding VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)

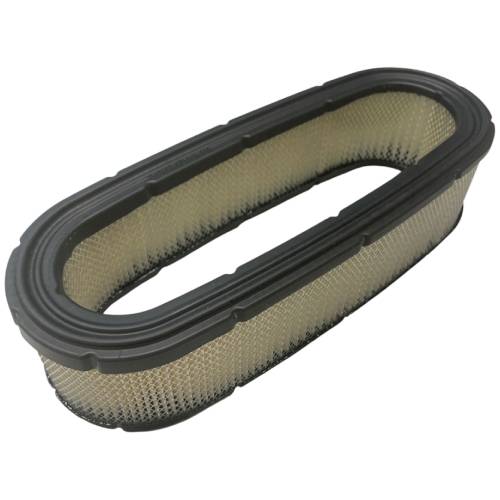

394019S Air fiter Cartridge


Quantity:

394019S Air fiter Cartridge

Price: 18.90 (15.75 Excluding VAT at 20%)

Approx shipping weight 350g

Oval paper air filter cartridge for opposed twin cylinder engines
Approx 24.5cm long x 10cm wide


394018S Air Filter


Quantity:

394018S Air Filter

Price: 19.38 (16.15 Excluding VAT at 20%)

Approx shipping weight 310g

Round paper air filter cartridge for selected twin cylinder engines
Approx measurements - I/D 14cm, O/D 18cm, Height 5.5cm


272490S Pre filter


Quantity:

272490S Pre filter

Price: 4.98 (4.15 Excluding VAT at 20%)

Approx shipping weight 40g

Foam pre-filter element for 394018 and 394019 cartridges


491056 Oil Filter


Quantity:

491056 Oil Filter

Price: 13.02 (10.85 Excluding VAT at 20%)

Approx shipping weight 310g

Oil filter for pressure lubricated engines
Approx 8.5cm tall


594200 (was 796530)/796532 Oil Drain Extension


Quantity:

594200 (was 796530)/796532 Oil Drain Extension

Price: 21.36 (17.80 Excluding VAT at 20%)

Approx shipping weight 140g

Extended oil drain pipe kit
Allows easier oil draining away from bodywork etc.
Includes 796530 drain pipe and 796532 Connector
Pipe can be clipped up out of the way when not in use
Can be retro fitted to any engine with 3/8" Pipe thread (approx 17mm thread outside diameter)


5401K Oil Drain Adaptor Kit


Quantity:

5401K Oil Drain Adaptor Kit

Price: 12.78 (10.65 Excluding VAT at 20%)

Approx shipping weight 70g

Oil drain adaptor and extension tube.
Quick drain sump plug valve and 20cm extension tube.
Fits most larger engines. (Sump plug thread approx 17mm outside diameter)


281370S Dipstick Tube Seal


Quantity:

281370S Dipstick Tube Seal

Price: 3.96 (3.30 Excluding VAT at 20%)

Approx shipping weight 10g

Oil filler/dipstick threaded rubber seal


795027 Fuel Cap (was 493988S)


Quantity:

795027 Fuel Cap (was 493988S)

Price: 5.88 (4.90 Excluding VAT at 20%)

Approx shipping weight 30g

Large plastic fuel cap. Fits plastic tank with large opening.
Fuel tank thread approx 56mm outside diameter.


791545 (was 392305S) Fuel Cap


Quantity:

791545 (was 392305S) Fuel Cap

Price: 7.02 (5.85 Excluding VAT at 20%)

Approx shipping weight 35g

Fuel cap. Replaces 392305S & 392301
Tank thread O/D approx 48mm


395051R Briggs and Stratton Fuel Tube


Quantity:

395051R Briggs and Stratton Fuel Tube

Price: 4.62 (3.85 Excluding VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


710075 Fuel Tube clamp


Quantity:

710075 Fuel Tube clamp

Price: 3.06 (2.55 Excluding VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051


691038 Fuel Tube Clamp - Black


Quantity:

691038 Fuel Tube Clamp - Black

Price: 3.00 (2.50 Excluding VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 791850)


791850 Fuel Tube Clamp - Green


Quantity:

791850 Fuel Tube Clamp - Green

Price: 3.00 (2.50 Excluding VAT at 20%)

Approx shipping weight 10g

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)


698183 Fuel Tap


Quantity:

698183 Fuel Tap

Price: 7.08 (5.90 Excluding VAT at 20%)

Approx shipping weight 15g

In line fuel shut off valve supplied with 2 x 691038 tube clamp


394358S Fuel Filter


Quantity:

394358S Fuel Filter

Price: 4.44 (3.70 Excluding VAT at 20%)

Approx shipping weight 10g

White in line fuel filter for pumped or higher pressure gravity fuel systems


691035 Fuel Filter


Quantity:

691035 Fuel Filter

Price: 7.92 (6.60 Excluding VAT at 20%)

Approx shipping weight 15g

Paper type in line fuel filter fitted in many pumped fuel systems


592840 Fuel Shut Off Valve


Quantity:

592840 Fuel Shut Off Valve

Price: 27.36 (22.80 Excluding VAT at 20%)

Approx shipping weight 30g

Old style tank mounted fuel shut off valve (replaces 691940, 293934, 394387, 692302)



690612 Fuel Filter Assembly


Quantity:

690612 Fuel Filter Assembly

Price: 20.88 (17.40 Excluding VAT at 20%)

Approx shipping weight 95g

Glass bowl type fuel filter/valve assembly
Can be used as an upgrade from 592840


691609 Hose Connector


Quantity:

691609 Hose Connector

Price: 3.78 (3.15 Excluding VAT at 20%)

Approx shipping weight 20g

Hose connector
Threads into carburettor body.


19200E Briggs and Stratton Engine Speed Tachometer


Quantity:

19200E Briggs and Stratton Engine Speed Tachometer

Price: 18.60 (15.50 Excluding VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine

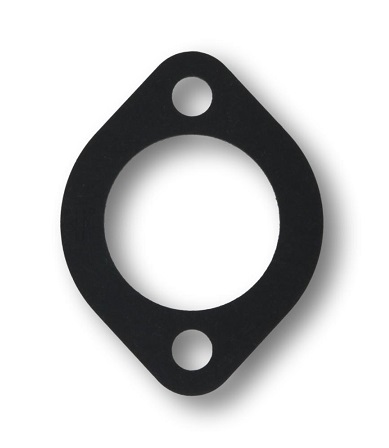

692219 Gasket


Quantity:

692219 Gasket

Price: 5.34 (4.45 Excluding VAT at 20%)

Approx shipping weight 15g

Gasket, (intake manifold to cylinder) For twin cylinder side valve engines
Bolt hole centres approx 45mm apart


692278 Gasket


Quantity:

692278 Gasket

Price: 3.54 (2.95 Excluding VAT at 20%)

Approx shipping weight 10g

Gasket (carb to manifold). For twin cylinder side valve engines
Bolt hole centres approx 53mm apart


271609 Gasket


Quantity:

271609 Gasket

Price: 5.88 (4.90 Excluding VAT at 20%)

Approx shipping weight 5g

Carb bowl gasket for older twin cylinder engines
Note carefully the holes compared with 271008 and 273186S below


271008 Gasket


Quantity:

271008 Gasket

Price: 3.42 (2.85 Excluding VAT at 20%)

Approx shipping weight 10g

Carb body gasket for Side valve twin engine before code 84022400
Note carefully the holes compared with 271609 above and 273186S below


273186S Gasket


Quantity:

273186S Gasket

Price: 4.44 (3.70 Excluding VAT at 20%)

Approx shipping weight 10g

Carb body gasket for Side valve twin engine after code 84022400
Note carefully the holes compared with 271609 and 21008 above

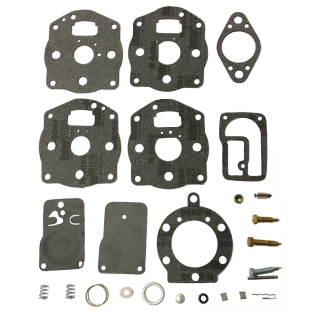

694056 Carburettor Overhaul Kit


Quantity:

694056 Carburettor Overhaul Kit

Price: 33.06 (27.55 Excluding VAT at 20%)

Approx shipping weight 70g

Carburettor overhaul kit
For 3 screw pump cover carburettors
Includes the gaskets for all bowl types


393397 Fuel Pump Kit


Quantity:

393397 Fuel Pump Kit

Price: 8.52 (7.10 Excluding VAT at 20%)

Approx shipping weight 15g

Fuel pump repair kit
For Twin cylinder side valve engines whose pump cover is retained by 3 screws. Includes diaphragms, gasket and springs


394681 Needle Kit


Quantity:

394681 Needle Kit

Price: 7.44 (6.20 Excluding VAT at 20%)

Approx shipping weight 5g

Needle & seat. Includes earlier (seperate seat, square section needle) and later(tip seating, triangle section) needles. Instructions included.


394682 Inlet Needle Valve


Quantity:

394682 Inlet Needle Valve

Price: 14.46 (12.05 Excluding VAT at 20%)

Approx shipping weight 5g

Triangular Vitron tipped inlet needle valve kit. Gravity feed
Includes brass seat.
If not replacing the brass seat, use 394681


394683 Needle & Seat


Quantity:

394683 Needle & Seat

Price: 27.00 (22.50 Excluding VAT at 20%)

Approx shipping weight 5g

Needle and seat.


794360 Voltage Regulator (was 691188)


Quantity:

794360 Voltage Regulator (was 691188)

Price: 45.06 (37.55 Excluding VAT at 20%)

Approx shipping weight 80g

12 Volt regulator and rectifier for many larger electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector


845907 (797375) Voltage Regulator


Quantity:

845907 (797375) Voltage Regulator

Price: 46.20 (38.50 Excluding VAT at 20%)

Approx shipping weight 170g

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector


19368 Ignition Spark Tester


Quantity:

19368 Ignition Spark Tester

Price: 16.63 (13.86 Excluding VAT at 20%)

Approx shipping weight 90g

Ignition spark tester. Tests the ignition system for efficiency
For all engines

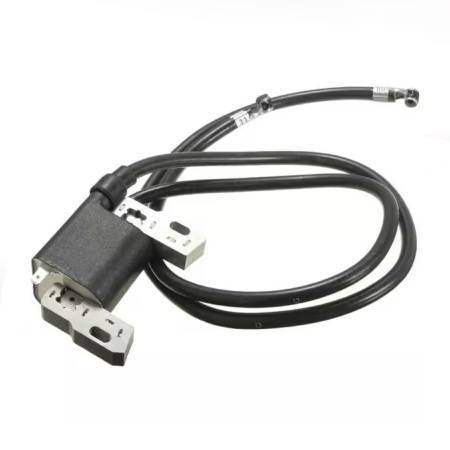

590781 (was 394891) Ignition Armature


Quantity:

590781 (was 394891) Ignition Armature

Price: 30.12 (25.10 Excluding VAT at 20%)

Approx shipping weight 400g

Ignition armature for twin cylinder L Head (sidevalve) engines (two HT leads)



66538S/493880S Terminal & Elbow


Quantity:

66538S/493880S Terminal & Elbow

Price: 5.76 (4.80 Excluding VAT at 20%)

Approx shipping weight 10g

Spark plug terminal (493880S) and rubber elbow (66538S), to fit all side valve HT leads


692390 Stop Wire


Quantity:

692390 Stop Wire

Price: 3.66 (3.05 Excluding VAT at 20%)

Approx shipping weight 20g

Stop wire. Approx 42cm long
Can also be used on old points ignition systems by cutting off the spade connector.


294628 Breaker Points


Quantity:

294628 Breaker Points

Price: 19.32 (16.10 Excluding VAT at 20%)

Approx shipping weight 35g

Contact breaker points for most points ignition engines
(Fitted under the flywheel) Includes spring compressing tool


695708 Starter Gear


Quantity:

695708 Starter Gear

Price: 7.26 (6.05 Excluding VAT at 20%)

Approx shipping weight 20g

16 tooth plastic starter gear for most starter motors


696541 Starter Drive


Quantity:

696541 Starter Drive

Price: 27.42 (22.85 Excluding VAT at 20%)

Approx shipping weight 180g

Electric starter motor drive kit for engines fitted with 16 tooth plastic starter gear.
Plastic drive gear and "c" clip type retainer


691265 Starter 'C' Clip


Quantity:

691265 Starter 'C' Clip

Price: 3.72 (3.10 Excluding VAT at 20%)

Approx shipping weight 5g

'C' clip retainer for starter motors


691293 Brush Holder


Quantity:

691293 Brush Holder

Price: 25.20 (21.00 Excluding VAT at 20%)

Approx shipping weight 200g

Starter motor brush holder. Includes brushes.
For motor with metal baseplate bolted onto the retainer.


691286 Metal Plate


Quantity:

691286 Metal Plate

Price: 16.92 (14.10 Excluding VAT at 20%)

Approx shipping weight 60g

Starter motor base plate
Includes bronze bearing bearing


696540 Starter Drive


Quantity:

696540 Starter Drive

Price: 25.92 (21.60 Excluding VAT at 20%)

Approx shipping weight 180g

Electric starter motor drive kit for most earlier starter motors
Plastic drive gear and pin type retainer.(also suits early models without return spring & cage)


691641 Pin


Quantity:

691641 Pin

Price: 3.42 (2.85 Excluding VAT at 20%)

Approx shipping weight 10g

Retaining pin. For pin retained started gears


691656 Starter Solenoid


Quantity:

691656 Starter Solenoid

Price: 19.32 (16.10 Excluding VAT at 20%)

Approx shipping weight 200g

691656 Starter Solinoid, single poll
Please note - starter solenoids are generally originally provided by the equipment manufacturer not Briggs and Stratton
This is a fairly universal soleniod that fits most applications however, if you wish to replace the original exactly, a replacement would need to be obtained through the equipment (mower etc.) manufacturer


692318 Ignition Switch


Quantity:

692318 Ignition Switch

Price: 23.04 (19.20 Excluding VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set

Price: 8.58 (7.15 Excluding VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. (see pop up link below for shape) Fits most electric start machines


1714054SM Delta Ignition Key


Quantity:

1714054SM Delta Ignition Key

Price: 3.78 (3.15 Excluding VAT at 20%)

Approx shipping weight 10g

Ignition Key. Delta
Used by a number of ride on mower manufacturers. Including some models from, John Deere, Rally, Champion, Craftsman, AYP and others


592831 (was 696459) Alternator Dual Circuit


Quantity:

592831 (was 696459) Alternator Dual Circuit

Price: 50.22 (41.85 Excluding VAT at 20%)

Approx shipping weight 570g

Dual circuit alternator
Red cable - 3 amp DC unregulated charging output
Black cable - 5 amp AC for lights


592829 (was 696457) Alternator 5-9 Amp


Quantity:

592829 (was 696457) Alternator 5-9 Amp

Price: 40.86 (34.05 Excluding VAT at 20%)

Approx shipping weight 410g

5-9 Amp Alternator. Single black wire with round green connector.
Used in conjunction with 794360 Regulator.


794360 Voltage Regulator (was 691188)


Quantity:

794360 Voltage Regulator (was 691188)

Price: 45.06 (37.55 Excluding VAT at 20%)

Approx shipping weight 80g

12 Volt regulator and rectifier for many larger electric start engines
Approx 4cm square. Yellow lead with round connector, Red lead with round connector


592830 (was 696458) Alternator 10-16 Amp


Quantity:

592830 (was 696458) Alternator 10-16 Amp

Price: 46.26 (38.55 Excluding VAT at 20%)

Approx shipping weight 370g

Alternator, 10-16A regulated with 2 black leads and yellow rectangular two pin connector
Used in conjunction with 845907 Regulator


845907 (797375) Voltage Regulator


Quantity:

845907 (797375) Voltage Regulator

Price: 46.20 (38.50 Excluding VAT at 20%)

Approx shipping weight 170g

12 Volt regulator and rectifier for many larger electric start engines
Approx 5.5cm x 8cm. 2 Yellow leads with rectangular connector, Red lead with round connector


692188 Recoil Rope


Quantity:

692188 Recoil Rope

Price: 6.36 (5.30 Excluding VAT at 20%)

Approx shipping weight 35g

5mm x 1.6m long recoil rope for many larger engines. Soft white


490652 Starter Grip


Quantity:

490652 Starter Grip

Price: 5.70 (4.75 Excluding VAT at 20%)

Approx shipping weight 55g

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871


490179 Briggs & Stratton Recoil Starter Spring


Quantity:

490179 Briggs & Stratton Recoil Starter Spring

Price: 12.24 (10.20 Excluding VAT at 20%)

Approx shipping weight 120g

Recoil rewind spring


690664 Screw


Quantity:

690664 Screw

Price: 3.96 (3.30 Excluding VAT at 20%)

Approx shipping weight 10g

Screw 10-32 thread x 3/8" long (0.19" thread diapmeter - approx 4.8mm)
Used in many places where a small short screw is required such as pressed steel muffler guards, covers and shields etc.


271867S Head Gasket


Quantity:

271867S Head Gasket

Price: 14.94 (12.45 Excluding VAT at 20%)

Approx shipping weight 45g

Head gasket, Side Valve (L Head) twin. Cylinder 1 (slightly nearer to flywheel)


271868S Head Gasket


Quantity:

271868S Head Gasket

Price: 14.94 (12.45 Excluding VAT at 20%)

Approx shipping weight 45g

Head gasket. Side Valve (L Head) Twin. cylinder 2 (slightly further from flywheel)



27803S Valve Cover Gasket


Quantity:

27803S Valve Cover Gasket

Price: 2.76 (2.30 Excluding VAT at 20%)

Approx shipping weight 5g

Valve chest cover gasket. Screw hole centres approx 88mm apart


291675S Oil Seal


Quantity:

291675S Oil Seal

Price: 4.50 (3.75 Excluding VAT at 20%)

Approx shipping weight 15g

PTO side oil seal. For model side valve twin engines.
O/D approx 48mm I/D approx 34mm


391086S Seal-Oil


Quantity:

391086S Seal-Oil

Price: 4.08 (3.40 Excluding VAT at 20%)

Approx shipping weight 10g

Flywheel side oil seal for side valve twin engines.
Approx 42mm O/D x 28mm I/D


691640 Fuel Tank Bolt


Quantity:

691640 Fuel Tank Bolt

Price: 3.78 (3.15 Excluding VAT at 20%)

Approx shipping weight 10g

Cylinder head bolt
Approx 50mm long.


692282 Gasket - Muffler


Quantity:

692282 Gasket - Muffler

Price: 4.14 (3.45 Excluding VAT at 20%)

Approx shipping weight 15g

Exhaust gasket. For L-Head twin cylinder engines which have short exhaust manifold adaptors bolted to each cylinder.
Bolt hole centres approx 45mm apart with 23mm diapmeter opening


698941 Exhaust Screw


Quantity:

698941 Exhaust Screw

Price: 3.96 (3.30 Excluding VAT at 20%)

Approx shipping weight 10g

Exhaust muffler screw for larger engines with flanged exhaust.
Cap head with torx socket.
Replaces older hex head and allen key bolts.


795036 (was 393761) Deflector Muffler


Quantity:

795036 (was 393761) Deflector Muffler

Price: 7.68 (6.40 Excluding VAT at 20%)

Approx shipping weight 75g

Exhaust deflector. Includes screws
Fits many larger engine mufflers


690453 Locknut


Quantity:

690453 Locknut

Price: 3.30 (2.75 Excluding VAT at 20%)

Approx shipping weight 25g

Muffler locknut for screw in twin cylinder engine mufflers
3/4" NPT thread approx 26mm thread O/D


222698S Briggs & Stratton Spare Parts Flywheel key


Quantity:

222698S Briggs & Stratton Spare Parts Flywheel key

Price: 2.64 (2.20 Excluding VAT at 20%)

Approx shipping weight 5g

Flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm


691483 1/4


Quantity:

691483 1/4" Key

Price: 4.56 (3.80 Excluding VAT at 20%)

Approx shipping weight 20g

1/4" Square Pulley key. Approx 39mm long


19203 Puller - Large


Quantity:

19203 Puller - Large

Price: 11.65 (9.71 Excluding VAT at 20%)

Approx shipping weight 230g

Flywheel puller for larger engines
Distance between outer hole centres approx 72mm
Includes long and short bolt sets
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)


690662 Nut


Quantity:

690662 Nut

Price: 5.10 (4.25 Excluding VAT at 20%)

Approx shipping weight 35g

Nut, crankshaft/flywheel
Required for puller use on engines which have a square drive rewind starter clutch


Unlisted parts page
Unlisted parts page
Unlisted parts page

Briggs&Stratton uk | Briggs and Stratton Twin Cylinder Horizontal Engine Parts |  Briggs and Stratton Twin Cylinder Side Valve (L-Head/Flat Twin/Opposed Twin) Horizontal Engine Parts

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
