B&S Horizontal crankshaft 2-5 HP Sidevalve

Briggs&Stratton uk | Horizontal Crankshaft 2-6.5 HP Engine Spares |  B&S Horizontal crankshaft 2-5 HP Sidevalve

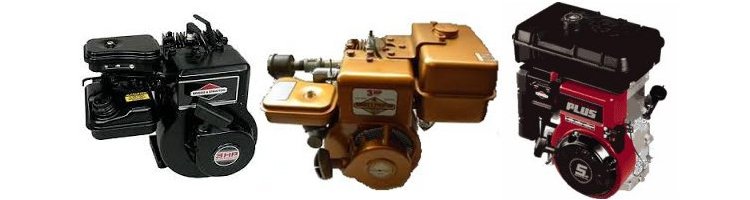

Horizontal Crankshaft 2-7 HP (Sidevalve)


2HP, 3HP, 3.5HP, 4HP and 5HP Industrial Plus, I/C and other Horizontal Crankshaft Engines

(as fitted to Cylinder Mowers, Rotorvators, Scarifiers, Cement Mixers, Generators, Bale Lifters, Scarifiers etc.)

They are side valve with the spark plug on top of the engine, set in the centre of the cylinder head cooling fins.

The fuel tank will either be at the rear with the carburettor mounted directly on it, or will be mounted to the top
of the engine above the carb level.

The pull start will be on the side with the crankshaft emerging horizontally on the opposite side.

Some Models may have an integral reduction gearbox or a secondary pto shaft on the output side

The Model, Type and Code numbers are either stamped into the metal engine cowling (on top next to the spark plug
or down one of the flat sides usually behind the air filter), or on a small aluminium plate rivited to the face of the cowling
The Model number will begin either 6,8,9,10,11 or 13.

If the parts you need are not listed, please use the link button at the bottom of this page.

270962 Briggs and Stratton Single Cylinder Repair Manual


Quantity:

270962 Briggs and Stratton Single Cylinder Repair Manual

Price: 18.99

Approx shipping weight 780g

Repair manual for all single cylinder side valve engines built after 1981
Covers all you need to know!


CE8069 Vintage Engine Repair Manual


Quantity:

CE8069 Vintage Engine Repair Manual

Price: 25.36

Approx shipping weight 780g

Repair manual for engines dating 1919 to 1981
Includes Cast iron models A to ZZ and 5's to 320000
Aluminium engines 6B, 8B and 60000 to 253400


992380 Fuel Fit Additive


Quantity:

992380 Fuel Fit Additive

Price: 4.19 (3.49 Excluding VAT at 20%)

Approx shipping weight 130g

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc.

100 ml, treats 10 litres of fuel


992430 Rotovator/Snowblower Cover


Quantity:

992430 Rotovator/Snowblower Cover

Price: 24.00 (20.00 Excluding VAT at 20%)

Approx shipping weight 720g

Rotovator or Snowblower weatherproof cover


992300C Spark Plug


Quantity:

992300C Spark Plug

Price: 4.39 (3.66 Excluding VAT at 20%)

Approx shipping weight 50g

Short reach spark plug for all Briggs and Stratton side valve engines


992356 Spark Plug Wrench


Quantity:

992356 Spark Plug Wrench

Price: 6.12 (5.10 Excluding VAT at 20%)

Approx shipping weight 120g

19mm/21mm Spark plug box wrench for 992041 spark plug


992015 Throttle control


Quantity:

992015 Throttle control

Price: 17.48 (14.57 Excluding VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)


992016 Throttle control


Quantity:

992016 Throttle control

Price: 12.50 (10.42 Excluding VAT at 20%)

Approx shipping weight 105g

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)


690798/691044 Cable Clamp & Screw


Quantity:

690798/691044 Cable Clamp & Screw

Price: 7.50 (6.25 Excluding VAT at 20%)

Approx shipping weight 10g

Clamp and screw, throttle cable


992244 (Was 992233) Briggs and Stratton Quantum Service kit


Quantity:

992244 (Was 992233) Briggs and Stratton Quantum Service kit

Price: 13.50 (11.25 Excluding VAT at 20%)

Approx shipping weight 760g

Briggs and Stratton genuine service tune up kit for Horizontal crankshaft engines with a flat 13cm x 11.5cm air filter
Includes 491588S Air Filter, 0.6l Oil, Spark Plug


491588S Genuine Briggs Spares Air Filter


Quantity:

491588S Genuine Briggs Spares Air Filter

Price: 6.36 (5.30 Excluding VAT at 20%)

Approx shipping weight 40g

Paper air filter for many engines
Approx 13cm x 11.5cm


491435S Pre filter


Quantity:

491435S Pre filter

Price: 4.62 (3.85 Excluding VAT at 20%)

Approx shipping weight 10g

Foam pre filter for 491588 paper filter fitted to horizontal crankshaft engines


790166 Air Filter


Quantity:

790166 Air Filter

Price: 14.28 (11.90 Excluding VAT at 20%)

Approx shipping weight 80g

Oval air filter cartridge for later horizontal engines
Approx 75mm long x 52mm high


494511S Air Filter Cartridge


Quantity:

494511S Air Filter Cartridge

Price: 13.26 (11.05 Excluding VAT at 20%)

Approx shipping weight 110g

Paper air filter cartridge for selected Industrial Plus engines
Approx 16cm x 7.5cm with paper creases running lengthways


492889 Pre filter


Quantity:

492889 Pre filter

Price: 5.94 (4.95 Excluding VAT at 20%)

Approx shipping weight 10g

Foam pre filter for 491384 & 691643 air filter cartridges


392308S Air Filter


Quantity:

392308S Air Filter

Price: 13.02 (10.85 Excluding VAT at 20%)

Approx shipping weight 120g

Paper air filter cartridge for many small horizontal crankshaft engines
Approx 7cm diameter x 7cm high with 3cm hole at each end


396424S Air Filter


Quantity:

396424S Air Filter

Price: 11.64 (9.70 Excluding VAT at 20%)

Approx shipping weight 120g

Paper air filter cartridge for many small horizontal crankshaft engines
Approx 7cm diameter x 7cm high with top hole closed

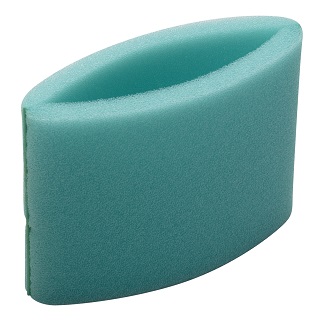

271466 Pre Filter


Quantity:

271466 Pre Filter

Price: 3.78 (3.15 Excluding VAT at 20%)

Approx shipping weight 15g

Foam pre-filter for 392308 & 396424 cartridges
Can be retro fitted to extend filter life


27987S Air Filter


Quantity:

27987S Air Filter

Price: 6.36 (5.30 Excluding VAT at 20%)

Approx shipping weight 20g

Foam air filter element for most older 2-5 HP horizontal crankshaft engines
Approx 14cm long x 11.5cm at its widest point


496047 (390492) Filter Cartridge


Quantity:

496047 (390492) Filter Cartridge

Price: 24.66 (20.55 Excluding VAT at 20%)

Approx shipping weight 250g

Air filter cartridge and Pre filter.
Includes adapter for use when replacing foam filter 270209 and central support tube fitted to some old engines.
Approx 70mm high x 95mm diameter
Replaces 390492


281370S Dipstick Tube Seal


Quantity:

281370S Dipstick Tube Seal

Price: 3.96 (3.30 Excluding VAT at 20%)

Approx shipping weight 10g

Oil filler/dipstick threaded rubber seal


281658S Oil Filler Cap


Quantity:

281658S Oil Filler Cap

Price: 2.76 (2.30 Excluding VAT at 20%)

Approx shipping weight 10g

Screw in oil filler cap


69345 Oil Filler Cap


Quantity:

69345 Oil Filler Cap

Price: 14.46 (12.05 Excluding VAT at 20%)

Approx shipping weight 30g

Metal oil filler cap for old horizontal engines. Includes seal


395051R Briggs and Stratton Fuel Tube


Quantity:

395051R Briggs and Stratton Fuel Tube

Price: 4.62 (3.85 Excluding VAT at 20%)

Approx shipping weight 20g per 20cm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)


710075 Fuel Tube clamp


Quantity:

710075 Fuel Tube clamp

Price: 3.06 (2.55 Excluding VAT at 20%)

Approx shipping weight 10g

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051


691038 Fuel Tube Clamp - Black


Quantity:

691038 Fuel Tube Clamp - Black

Price: 3.00 (2.50 Excluding VAT at 20%)

Approx shipping weight 10g

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 95162)


791850 Fuel Tube Clamp - Green


Quantity:

791850 Fuel Tube Clamp - Green

Price: 3.00 (2.50 Excluding VAT at 20%)

Approx shipping weight 10g

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)


298090S Fuel Filter


Quantity:

298090S Fuel Filter

Price: 4.44 (3.70 Excluding VAT at 20%)

Approx shipping weight 10g

Red in line fuel filter for gravity fed fuel systems


698183 Fuel Tap


Quantity:

698183 Fuel Tap

Price: 7.08 (5.90 Excluding VAT at 20%)

Approx shipping weight 15g

In line fuel shut off valve supplied with 2 x 95162 tube clamp


698182 Fuel Valve


Quantity:

698182 Fuel Valve

Price: 8.64 (7.20 Excluding VAT at 20%)

Approx shipping weight 20g

Fuel shut off valve. 90 degrees screw in.
Replaces old number 399517


492649 (was 399949) Shut Off Valve


Quantity:

492649 (was 399949) Shut Off Valve

Price: 36.72 (30.60 Excluding VAT at 20%)

Approx shipping weight 60g

Fuel shut off valve. Metal with male thread into tank.
1/4" hose outlet


592840 Fuel Shut Off Valve


Quantity:

592840 Fuel Shut Off Valve

Price: 27.36 (22.80 Excluding VAT at 20%)

Approx shipping weight 30g

Old style tank mounted fuel shut off valve (replaces 691940, 293934, 394387, 692302)
Note - the male thread tank outlet which this tap screws onto is no longer available



690612 Fuel Filter Assembly


Quantity:

690612 Fuel Filter Assembly

Price: 20.88 (17.40 Excluding VAT at 20%)

Approx shipping weight 95g

Glass bowl type fuel filter/valve assembly
Can be used as an upgrade from 592840


795027 Fuel Cap (was 493988S)


Quantity:

795027 Fuel Cap (was 493988S)

Price: 5.88 (4.90 Excluding VAT at 20%)

Approx shipping weight 30g

Large plastic fuel cap. Fits plastic tank with large opening.
Fuel tank thread approx 56mm outside diameter.


494559 Fuel Cap


Quantity:

494559 Fuel Cap

Price: 12.96 (10.80 Excluding VAT at 20%)

Approx shipping weight 30g

Bayonet style fuel cap for many horizontal crankshaft engines
Approx 5cm diameter


493982S Fuel Cap


Quantity:

493982S Fuel Cap

Price: 3.54 (2.95 Excluding VAT at 20%)

Approx shipping weight 35g

Fuel cap, metal 2-4HP. Thread O/D approx 38mm


19200E Briggs and Stratton Engine Speed Tachometer


Quantity:

19200E Briggs and Stratton Engine Speed Tachometer

Price: 18.60 (15.50 Excluding VAT at 20%)

Approx shipping weight 40g

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine


796260 (was 692208) Governor Spring


Quantity:

796260 (was 692208) Governor Spring

Price: 6.12 (5.10 Excluding VAT at 20%)

Approx shipping weight 10g

Governor spring for mechanically governed horizontal crankshaft engines with
governor spring behind fuel tank lower bracket.
Suitable replacement for 260695 and others.


692205 (was 260041) Governor Spring


Quantity:

692205 (was 260041) Governor Spring

Price: 6.60 (5.50 Excluding VAT at 20%)

Approx shipping weight 5g

Governor spring for 2 and 3HP horizontal crankshaft engines fitted with air vane governor


27404 Carb Gasket


Quantity:

27404 Carb Gasket

Price: 2.52 (2.10 Excluding VAT at 20%)

Approx shipping weight 5g

Carburetor to tank gasket for selected 2 & 3 HP horizontal crankshaft engines


495606 Carburettor Overhaul Kit


Quantity:

495606 Carburettor Overhaul Kit

Price: 29.10 (24.25 Excluding VAT at 20%)

Approx shipping weight 100g

495606 (was 494624) Carburettor overhaul kit
Includes intake and tank gaskets, pump diaphram and adjustment needles
Fits engines which use 272409S, 272996 or 692241 tank gaskets (see below)


299060 Needle Valve Kit


Quantity:

299060 Needle Valve Kit

Price: 14.82 (12.35 Excluding VAT at 20%)

Approx shipping weight 20g

Needle valve kit with screw in metal outer
Fitted to most tank mounted carburettors


790029 Screw


Quantity:

790029 Screw

Price: 3.42 (2.85 Excluding VAT at 20%)

Approx shipping weight 5g

Carburettor to tank mounting screw


272409S (was 27911) Carb Gasket


Quantity:

272409S (was 27911) Carb Gasket

Price: 2.76 (2.30 Excluding VAT at 20%)

Approx shipping weight 10g

Carbretor to tank gasket for selected 2 to 5 HP horizontal crankshaft engines


272996 (was 272410) Carb Gasket


Quantity:

272996 (was 272410) Carb Gasket

Price: 3.06 (2.55 Excluding VAT at 20%)

Approx shipping weight 10g

Carburetor to tank gasket for selected horizontal crankshaft engines
4 screw holes


692241 (was 272489) Carb Gasket


Quantity:

692241 (was 272489) Carb Gasket

Price: 5.04 (4.20 Excluding VAT at 20%)

Approx shipping weight 10g

Carburetor to tank gasket for selected horizontal crankshaft engines
5 screw holes


270026 Carb Diaphragm


Quantity:

270026 Carb Diaphragm

Price: 3.72 (3.10 Excluding VAT at 20%)

Approx shipping weight 5g

Carburetor pump diaphram for many small horizontal crankshaft engines
Secured with 4 screws


272538S Carb Diaphragm


Quantity:

272538S Carb Diaphragm

Price: 4.08 (3.40 Excluding VAT at 20%)

Approx shipping weight 5g

Carburetor pump diaphram for many small horizontal crankshaft engines
Secured with 5 screws


692206 Diaphragm Spring


Quantity:

692206 Diaphragm Spring

Price: 2.40 (2.00 Excluding VAT at 20%)

Approx shipping weight 5g

Diaphram pump spring


690766 Cap


Quantity:

690766 Cap

Price: 2.64 (2.20 Excluding VAT at 20%)

Approx shipping weight 5g

Cap, for pump spring 692206


391813 Pick Up Tube


Quantity:

391813 Pick Up Tube

Price: 7.14 (5.95 Excluding VAT at 20%)

Approx shipping weight 30g

Carb pick up tube. Fits horizontal crankshaft sidevalve engines
Approx 67mm overall length


497413S (was 296811) Pick Up Pipe


Quantity:

497413S (was 296811) Pick Up Pipe

Price: 7.14 (5.95 Excluding VAT at 20%)

Approx shipping weight 10g

Fuel pick up pipe
Fits horizontal crankshaft engines with model starting 13
Approx 40mm overall length


27355S Manifold Gasket


Quantity:

27355S Manifold Gasket

Price: 2.52 (2.10 Excluding VAT at 20%)

Approx shipping weight 5g

Inlet manifold gasket for many small horizontal crankshaft engines
Two fitted back to back to reduce heat transfer to carburettor
Approx 3.5cm between bolt hole centres


273113S (was 271936 and 272585) Inlet Gasket


Quantity:

273113S (was 271936 and 272585) Inlet Gasket

Price: 4.74 (3.95 Excluding VAT at 20%)

Approx shipping weight 10g

Inlet manifold gasket for many later small horizontal crankshaft engines
Accomodates mounting bolt hole centres of 3.5cm & 4.5cm


23222 Nozzle


Quantity:

23222 Nozzle

Price: 19.08 (15.90 Excluding VAT at 20%)

Approx shipping weight 10g

Brass nozzle for small two piece carburettor that have 4 screrws holding the top and bottom halfs together
Approx 50mm long


27917 Gasket


Quantity:

27917 Gasket

Price: 4.08 (3.40 Excluding VAT at 20%)

Approx shipping weight 5g

Carburettor bowl gasket for small two piece carburettors that have 4 screrws holding the top and bottom halves together


293478 Needle and Seat


Quantity:

293478 Needle and Seat

Price: 27.42 (22.85 Excluding VAT at 20%)

Approx shipping weight 10g

Inlet needle and screw in brass seat for small two piece 4 screw carburettor
Includes Brass screw in seat, viton topped needle, washer and needle retainer.


230005 Valve


Quantity:

230005 Valve

Price: 7.86 (6.55 Excluding VAT at 20%)

Approx shipping weight 5g

Aluminium high speed needle valve for small two piece carburettor.


68987 Gasket


Quantity:

68987 Gasket

Price: 2.52 (2.10 Excluding VAT at 20%)

Approx shipping weight 5g

Intake manifold to carburettor gasket for small two piece carb with 3 screws holding top and bottom halves together. Bolt hole centres approx 38mm apart, central opening 18mm diameter


498260 Carb overhaul kit


Quantity:

498260 Carb overhaul kit

Price: 17.34 (14.45 Excluding VAT at 20%)

Approx shipping weight 60g

Carb overhaul kit for 09 & 13 series engine fitted with float type carburettor
Includes gaskets, seals, inlet needle and seat, idle mixture screw, welch plugs, float pin, shaft seals


398188 Needle


Quantity:

398188 Needle

Price: 4.80 (4.00 Excluding VAT at 20%)

Approx shipping weight 5g

Inlet valve needle & seat. for 09 & 13 series engine fitted with float type carburettor


693981 Carb Bowl Gasket


Quantity:

693981 Carb Bowl Gasket

Price: 4.80 (4.00 Excluding VAT at 20%)

Approx shipping weight 5g

Carburetor bowl gasket for engines
Approx 48mm outside diameter


270511 Carburetor Bowl Gasket


Quantity:

270511 Carburetor Bowl Gasket

Price: 4.62 (3.85 Excluding VAT at 20%)

Approx shipping weight 5g

Carburetor fibre bowl gasket for many older large engines
Approx 6cm diameter


690618 Bowl Washer


Quantity:

690618 Bowl Washer

Price: 2.40 (2.00 Excluding VAT at 20%)

Approx shipping weight 5g

Alluminium carburetor bowl lower sealing washer for older engines
Approx 10mm inside diameter


280973 Washer


Quantity:

280973 Washer

Price: 3.96 (3.30 Excluding VAT at 20%)

Approx shipping weight 5g

Fibre carburetor bowl lower seal washer for many engines
Approx 10mm inside diameter


271716 Washer


Quantity:

271716 Washer

Price: 3.24 (2.70 Excluding VAT at 20%)

Approx shipping weight 5g

Fibre carburetor bowl lower seal washer for many engines
Approx 9mm inside diameter


692255 Washer


Quantity:

692255 Washer

Price: 3.78 (3.15 Excluding VAT at 20%)

Approx shipping weight 5g

Fibre carburetor bowl lower seal washer for many engines
Approx 8mm inside diameter


806476 (846640) Carburetor Washer


Quantity:

806476 (846640) Carburetor Washer

Price: 3.54 (2.95 Excluding VAT at 20%)

Approx shipping weight 5g

Copper carburetor lower sealing washer for various engines
Approx 7.5 mm inside diameter


691108 Cover bolt


Quantity:

691108 Cover bolt

Price: 3.42 (2.85 Excluding VAT at 20%)

Approx shipping weight 10g

1/4 inch diameter bolt for engine cowling, carb bracket etc.
(approx 14mm long)


499901 Briggs and Stratton Starter Recoil Pulley & Spring


Quantity:

499901 Briggs and Stratton Starter Recoil Pulley & Spring

Price: 16.68 (13.90 Excluding VAT at 20%)

Approx shipping weight 180g

Briggs and Stratton Recoil pulley and spring for selected engines with plastic pawls
Approx 11.5cm diameter


498144 Recoil Pulley & Spring


Quantity:

498144 Recoil Pulley & Spring

Price: 16.92 (14.10 Excluding VAT at 20%)

Approx shipping weight 190g

Recoil pulley & spring for selected engines that have a screw retainer and plastic pawls & plate
Approx 13.5cm diameter


ST1 Starter Pawls & Plate


Quantity:

ST1 Starter Pawls & Plate

Price: 14.46 (12.05 Excluding VAT at 20%)

Approx shipping weight 20g

Starter pawls & retaining plate for engines with later (498144) type starter pulley
Parts Included - 2 x 281505S pawl, 692299 plate & 691855 friction spring


691696 Screw


Quantity:

691696 Screw

Price: 3.96 (3.30 Excluding VAT at 20%)

Approx shipping weight 10g

Screw, pawl plate retaining


697316 Briggs & Stratton Starter Rope


Quantity:

697316 Briggs & Stratton Starter Rope

Price: 4.08 (3.40 Excluding VAT at 20%)

Approx shipping weight 35g

Recoil rope for Briggs and Stratton engines
Approx 3.5mm diameter x 2.2m long. Dark grey


280399S (also 66734) Rope


Quantity:

280399S (also 66734) Rope

Price: 5.46 (4.55 Excluding VAT at 20%)

Approx shipping weight 35g

3.5mm diameter recoil rope for quantum engines.
Approx 2.4m long white
Replaces shorter rope 66734


393152 Rubber Grip


Quantity:

393152 Rubber Grip

Price: 5.64 (4.70 Excluding VAT at 20%)

Approx shipping weight 40g

Rubber recoil grip with plastic insert suits engines where grip returns to the engine


281434S Grip


Quantity:

281434S Grip

Price: 3.06 (2.55 Excluding VAT at 20%)

Approx shipping weight 20g

Starter grip for machines with extended rope and grip retained up the handles


280439S Recoil Pulley


Quantity:

280439S Recoil Pulley

Price: 7.62 (6.35 Excluding VAT at 20%)

Approx shipping weight 30g

Recoil pulley for many older engines with recoil mounted in engine cowling and square drive starter clutch
Approx 10.5cm diameter


295871 Recoil Pulley


Quantity:

295871 Recoil Pulley

Price: 11.04 (9.20 Excluding VAT at 20%)

Approx shipping weight 185g

Recoil pulley for 5HP + engines with square drive starter clutch
Comes with rope. Approx 13.5cm diameter


692188 Recoil Rope


Quantity:

692188 Recoil Rope

Price: 6.36 (5.30 Excluding VAT at 20%)

Approx shipping weight 35g

5mm x 1.6m long recoil rope for many larger engines. Soft white


490652 Starter Grip


Quantity:

490652 Starter Grip

Price: 5.70 (4.75 Excluding VAT at 20%)

Approx shipping weight 55g

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871


490179 Briggs & Stratton Recoil Starter Spring


Quantity:

490179 Briggs & Stratton Recoil Starter Spring

Price: 12.24 (10.20 Excluding VAT at 20%)

Approx shipping weight 120g

Recoil rewind spring for older engines with square clutch type recoil


690582 Washer


Quantity:

690582 Washer

Price: 4.14 (3.45 Excluding VAT at 20%)

Approx shipping weight 5g

Spring washer. Fits below starter clutch or flywheel nut.


399671 Briggs & Stratton Parts Starter Clutch


Quantity:

399671 Briggs & Stratton Parts Starter Clutch

Price: 32.34 (26.95 Excluding VAT at 20%)

Approx shipping weight 370g

Square drive starter clutch for older engines


19244 Starter Clutch Wrench


Quantity:

19244 Starter Clutch Wrench

Price: 5.92 (4.93 Excluding VAT at 20%)

Approx shipping weight 500g

Older type starter clutch removal tool
Sits over the clutch to enable standard socket set fitting


272167 Head Gasket


Quantity:

272167 Head Gasket

Price: 4.08 (3.40 Excluding VAT at 20%)

Approx shipping weight 20g

Cylinder head gasket for 2-3 HP horizontal crankshaft side valve engines
Replaces 027670


698717 Head Gasket


Quantity:

698717 Head Gasket

Price: 6.54 (5.45 Excluding VAT at 20%)

Approx shipping weight 20g

Cylinder head gasket for later 3.5HP horizontal crankshaft engines


272171 Head Gasket 4HP


Quantity:

272171 Head Gasket 4HP

Price: 6.42 (5.35 Excluding VAT at 20%)

Approx shipping weight 10g

Cylinder head gasket for some older 4HP engines(model number begins with 11)


270895 Crankcase gasket .005


Quantity:

270895 Crankcase gasket .005

Price: 6.66 (5.55 Excluding VAT at 20%)

Approx shipping weight 5g

Crankcase gasket .005" thick to reduce excessive end float by .010"
Has extra hole for use with 11 series engine


272157S Head Gasket 5HP


Quantity:

272157S Head Gasket 5HP

Price: 4.44 (3.70 Excluding VAT at 20%)

Approx shipping weight 20g

Cylinder head gasket for older 5HP engines


692213 (was 270080) Crankcase Gasket


Quantity:

692213 (was 270080) Crankcase Gasket

Price: 2.28 (1.90 Excluding VAT at 20%)

Approx shipping weight 40g

Crankcase gasket, standard. For engines with model numbers starting 10 or 13.


393812 Seal


Quantity:

393812 Seal

Price: 3.42 (2.85 Excluding VAT at 20%)

Approx shipping weight 10g

Oil seal for selected 5HP horizontal side valve engines
Approx 41 O/D x 18 I/D


294606S Oil Seal


Quantity:

294606S Oil Seal

Price: 5.70 (4.75 Excluding VAT at 20%)

Approx shipping weight 10g

Oil seal. Approx 34mm O/D x 24mm I/D


299819S Oil Seal


Quantity:

299819S Oil Seal

Price: 3.42 (2.85 Excluding VAT at 20%)

Approx shipping weight 15g

Oil seal (flywheel side and some cover sides)
Approx 32mm outside diameter x 20mm inside diameter


691952 Oil Seal


Quantity:

691952 Oil Seal

Price: 8.64 (7.20 Excluding VAT at 20%)

Approx shipping weight 10g

Oil seal. Reverse APTO shaft


699450 (was 498524)  Head Gasket Set


Quantity:

699450 (was 498524) Head Gasket Set

Price: 18.06 (15.05 Excluding VAT at 20%)

Approx shipping weight 50g

Cylinder head and valve gasket set for many older 3.5 HP horizontal crankshaft engines
For all decoke and valve work


498529 Gasket Set, Head


Quantity:

498529 Gasket Set, Head

Price: 17.94 (14.95 Excluding VAT at 20%)

Approx shipping weight 50g

Cylinder head and valve gasket set for many 5 HP horizontal crankshaft engines
For all decoke and valve work


695890 Valve Chest Gasket


Quantity:

695890 Valve Chest Gasket

Price: 2.58 (2.15 Excluding VAT at 20%)

Approx shipping weight 5g

Valve chest cover gasket for many engines
Internal approx 5.6cm x 2.7cm


27549S Valve Chest  Gasket


Quantity:

27549S Valve Chest Gasket

Price: 2.64 (2.20 Excluding VAT at 20%)

Approx shipping weight 5g

Valve chest gasket for many small horizontal crankshaft engines
Internal approx 6cm x 2.9cm


692189 Grommet


Quantity:

692189 Grommet

Price: 4.02 (3.35 Excluding VAT at 20%)

Approx shipping weight 10g

692189 Grommet, 90 degree


692187 (was 66578) Grommet


Quantity:

692187 (was 66578) Grommet

Price: 3.78 (3.15 Excluding VAT at 20%)

Approx shipping weight 10g

Grommet, breather tube, 45 degree. Fits into valve cover of many small engines


692218 Gasket, Crankcase


Quantity:

692218 Gasket, Crankcase

Price: 4.44 (3.70 Excluding VAT at 20%)

Approx shipping weight 5g

Crankcase gasket for 3-4HP engines


691880 Exhaust Gasket


Quantity:

691880 Exhaust Gasket

Price: 5.10 (4.25 Excluding VAT at 20%)

Approx shipping weight 10g

Exhaust Gasket for 3.5HP Side Valve engines. Bolt hole centres approx 30mm apart


691179 Bolt Lock


Quantity:

691179 Bolt Lock

Price: 4.08 (3.40 Excluding VAT at 20%)

Approx shipping weight 10g

Exhaust bolt lock plate for some 3.5HP engines. Bolt hole centres approx 30mm apart


89966 Exhaust


Quantity:

89966 Exhaust

Price: 10.80 (9.00 Excluding VAT at 20%)

Approx shipping weight 170g

Tube type exhaust muffler for many small horizontal crankshaft engines
Body approx 9cm long 4cm dia. with 20mm thread o/d


493288 (was 392811) Exhaust Muffler


Quantity:

493288 (was 392811) Exhaust Muffler

Price: 19.38 (16.15 Excluding VAT at 20%)

Approx shipping weight 390g

Exhaust muffler for many small horizontal crankshaft engines
Body approx 8.5cm long 8cm wide with 20mm thread o/d


691720 (was 220859) Locknut


Quantity:

691720 (was 220859) Locknut

Price: 4.92 (4.10 Excluding VAT at 20%)

Approx shipping weight 10g

Muffler locknut for 89966 and other 3/4" (approx 20mm thread O/D) mufflers


294599S Exhaust Muffler


Quantity:

294599S Exhaust Muffler

Price: 18.54 (15.45 Excluding VAT at 20%)

Approx shipping weight 400g

Cigar type muffler with approx 26mm o/d thread (3/4 NPT)
16cm overall length


494585 Exhaust Muffler


Quantity:

494585 Exhaust Muffler

Price: 18.72 (15.60 Excluding VAT at 20%)

Approx shipping weight 450g

494585 Exhaust assy. Complete with bolts and gasket to fit 5hp engines


691969 (was 396001) Lo Tone Muffler


Quantity:

691969 (was 396001) Lo Tone Muffler

Price: 63.90 (53.25 Excluding VAT at 20%)

Approx shipping weight 860g

Muffler, super lo tone. Fits 5HP side valve engines.
Includes bolts and heat shield/bolt lock plate


393760 Deflector


Quantity:

393760 Deflector

Price: 5.10 (4.25 Excluding VAT at 20%)

Approx shipping weight 30g

Muffler deflector. Includes screws. Fits 493288, 691969 & 494585 style mufflers


692237 Exhaust Gasket


Quantity:

692237 Exhaust Gasket

Price: 5.28 (4.40 Excluding VAT at 20%)

Approx shipping weight 5g

Exahust gasket for older (model begins 13) 5HP verticaal crankshaft engine
Bolt hole centres approx 40mm apart


393010S Muffler


Quantity:

393010S Muffler

Price: 17.52 (14.60 Excluding VAT at 20%)

Approx shipping weight 450g

Bodied muffler with 26mm o/d thread (3/4" NPT)
Approx 13cm overall length with 8cm diameter muffler at largest point


690453 Locknut


Quantity:

690453 Locknut

Price: 3.30 (2.75 Excluding VAT at 20%)

Approx shipping weight 25g

Muffler locknut for 294599S Muffler
3/4" NPT thread approx 26mm thread O/D


692304 Muffler


Quantity:

692304 Muffler

Price: 33.06 (27.55 Excluding VAT at 20%)

Approx shipping weight 800g

Large xhaust muffler for some 4HP and 5HP engines. Includes bolts, lockplate and gasket
Approx 10cm Square x 7cm Deep
Includes bolts, lock plate and heat shield/gasket


796956 (was 393757) Deflector


Quantity:

796956 (was 393757) Deflector

Price: 6.06 (5.05 Excluding VAT at 20%)

Approx shipping weight 80g

Exhaust deflector for 692304 and 393010S Muffler. Includes screws.
Screw hole centres diameter approx 65mm


19368 Ignition Spark Tester


Quantity:

19368 Ignition Spark Tester

Price: 16.63 (13.86 Excluding VAT at 20%)

Approx shipping weight 90g

Ignition spark tester. Tests the ignition system for efficiency
For all engines


692318 Ignition Switch


Quantity:

692318 Ignition Switch

Price: 23.04 (19.20 Excluding VAT at 20%)

Approx shipping weight 120g

Indak ignition key switch
Please check wiring details pop-up below as some equipment manufacturers use similar looking switches with differing pin positions


691959 Ignition Key Set


Quantity:

691959 Ignition Key Set

Price: 8.58 (7.15 Excluding VAT at 20%)

Approx shipping weight 10g

Indak Ignition key set. Contains two keys
Flat profile. Fits most electric start machines


66538S/493880S Terminal & Elbow


Quantity:

66538S/493880S Terminal & Elbow

Price: 5.76 (4.80 Excluding VAT at 20%)

Approx shipping weight 10g

Spark plug terminal (493880S) and rubber elbow (66538S), to fit all side valve HT leads


793351 Spark Plug Shield


Quantity:

793351 Spark Plug Shield

Price: 8.88 (7.40 Excluding VAT at 20%)

Approx shipping weight 40g

Metal shielded ignition terminal
Increases the effective length of HT lead by approx 35mm where the lead requires cutting back


591420 (was 793281) Ignition Armature


Quantity:

591420 (was 793281) Ignition Armature

Price: 40.86 (34.05 Excluding VAT at 20%)

Approx shipping weight 300g

Electronic ignition armature magneto coil for 2-3.5HP engines
Mounting hole centres approx 6.4cm apart


397358 Ignition Armature Coil


Quantity:

397358 Ignition Armature Coil

Price: 48.84 (40.70 Excluding VAT at 20%)

Approx shipping weight 370g

Electronic ignition armature magneto coil for 5 HP side valve engines
Also used to convert older points system engines to electronic ignition
Hole centres approx. 5.9cm apart


398811 Ignition Armature


Quantity:

398811 Ignition Armature

Price: 54.96 (45.80 Excluding VAT at 20%)

Approx shipping weight 380g

Electronic ignition armature magneto coil for 7 - 16 HP single cylinder side valve engines
Also used to convert older points system (coil 298968) engines to electronic ignition
Mounting hole centres approx 6.4cm apart


692310 Stop Switch


Quantity:

692310 Stop Switch

Price: 5.76 (4.80 Excluding VAT at 20%)

Approx shipping weight 10g

Stop switch.


294628 Breaker Points


Quantity:

294628 Breaker Points

Price: 19.32 (16.10 Excluding VAT at 20%)

Approx shipping weight 35g

Contact breaker points for most points ignition engines
(Fitted under the flywheel) Includes spring compressing tool


65704S Points Plunger


Quantity:

65704S Points Plunger

Price: 4.02 (3.35 Excluding VAT at 20%)

Approx shipping weight 5g

Points plunger. (pushes up 294628 points arm to open contacts)


222698S Briggs & Stratton Spare Parts Flywheel key


Quantity:

222698S Briggs & Stratton Spare Parts Flywheel key

Price: 2.64 (2.20 Excluding VAT at 20%)

Approx shipping weight 5g

Flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm


19069 Puller - Small


Quantity:

19069 Puller - Small

Price: 11.83 (9.86 Excluding VAT at 20%)

Approx shipping weight 140g

Flywheel puller for small engines
Distance between outer hole centres approx 40mm
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)


19165 Puller - Medium


Quantity:

19165 Puller - Medium

Price: 11.57 (9.64 Excluding VAT at 20%)

Approx shipping weight 160g

Flywheel puller for mid range engines
Distance between outer hole centres approx 51mm
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)


690662 Nut


Quantity:

690662 Nut

Price: 5.10 (4.25 Excluding VAT at 20%)

Approx shipping weight 35g

Nut, crankshaft/flywheel
Required for puller use on engines which have a square drive rewind starter clutch


692193 Crankshaft Woodruff key


Quantity:

692193 Crankshaft Woodruff key

Price: 2.28 (1.90 Excluding VAT at 20%)

Approx shipping weight 5g

Half moon woodruff key to fit crankshaft extension of most small Briggs and Stratton engines applications
No 505 - 5/32" x 5/8" (approx 4mm thick x 15mm long)


692191 3/16


Quantity:

692191 3/16" Key

Price: 5.40 (4.50 Excluding VAT at 20%)

Approx shipping weight 30g

Key, crankshaft pulley 3/16" (Approx 4.75mm) square section x 37mm long


691483 1/4


Quantity:

691483 1/4" Key

Price: 4.56 (3.80 Excluding VAT at 20%)

Approx shipping weight 20g

1/4" Square Pulley key. Approx 39mm long


Unlisted parts page
Unlisted parts page
Unlisted parts page

Briggs&Stratton uk | Horizontal Crankshaft 2-6.5 HP Engine Spares |  B&S Horizontal crankshaft 2-5 HP Sidevalve

©copyright 2005 G.Campbell. All rights reserved
(see terms and conditions)

spacer image
