Older 2-7 HP Vertical Crankshaft Engine spares

Walk behind mower cover.
Protects against most weather conditions.
Fits walk behind mowers up to 22"
Width 55cm
Length 142cm
Height to handlebar 119cm

Repair manual for all single cylinder side valve engines built after 1981 including Sprint, Classic and Quattro engines
Covers all you need to know!

Repair manual for engines dating 1919 to 1981
Includes Cast iron models A to ZZ and 5's to 320000
Aluminium engines 6B, 8B and 60000 to 253400
Please note - many engines built prior to 1981 were still in production after this date and are covered in the 270962 Repair Manual (see above) 270962 is not only cheaper but unless you specifically restore very old vintage engines, is likely to cover more engines that you are likely to encounter.
If you would like confirmation as to whether your engine is covered in the later manual, please use the "Send and Enquiry" button on the left to submit its Model, Type and Code numbers.

Short reach spark plug for all Briggs and Stratton side valve engines

19mm/21mm Spark plug box wrench for 992041 spark plug

Briggs and Stratton Petrol additive for all 4 stroke and 2 stroke petrol engines
Prevents fuel deterioration during periods of non-use and generally aids engine efficiency
Essential for correct winter storage of lawnmowers etc.

100 ml, treats 10 litres of fuel

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Negative action(Control pushed to fast, shortens inner wire)

Throttle control and cable to fit many applications
1.35m long. End can be bent to suit
Positive action(Control pushed to fast, lengthens inner wire)

Clamp and screw, throttle cable

Foam air filter for 3 - 3.5 HP older engines
Approx.12.5cm x 8.5cm

Air filter cannister for Sprint, Classic and Quattro engines.(Includes filter element)
Also used to replace older metal cannister

Foam air filter for 4 HP older engines with a model number starting with 10
Approx 14cm x 9cm

Foam air filter element for 4HP older engines with a model number starting with 11
Approx 13cm long x 9cm wide on top face

Foam air filter for 5 HP older engines
Approx.14.5cm x 10cm

Paper air filter cartridge for some older engines
Approx 7cm diameter x 7cm high with 3cm hole at each end

Paper air filter cartridge for some older engines
Approx 7cm diameter x 7cm high with top hole closed

Foam pre-filter for 392308 and 396424S cartridges
Can be retro fitted to extend filter life

Air filter cartridge and Pre filter.
Includes adapter for use when replacing foam filter 270209 and central support tube fitted to some old engines.
Approx 70mm high x 95mm diameter
Replaces 390492

Carburetor diaphram fitted some older engines
One large hole with a flat side
Note - complete carburettor which includes this diaphragm is cheaper (see 395375 below)

Plastic carburettor for engines that use 299637 Diaphragm (see above)
Includes diaphragm
Note - This carburettor is not for engines that have a rubber cold start primer.

Carburetor diaphram fitted to most older engines with metal carburetor

Pin and seal repair for carburettors which use 391681 daiphragm and are found to have a fuel tank top which is not flat

Gasket, choke link. For most automatic choke carburettors

Carburettor assy. For older 3 - 4 HP engines which have a tank mounted metal carburettor
Includes 391681 diaphram, 299060 Needle etc.

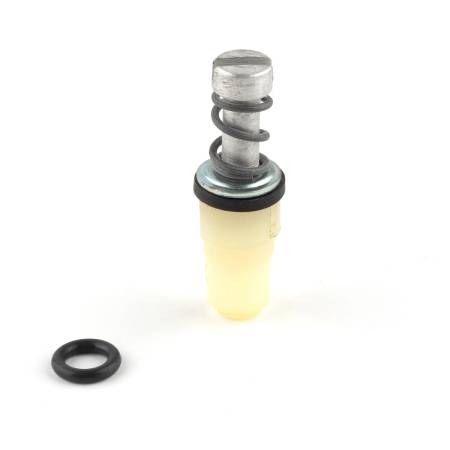

Needle valve kit with screw in metal outer
Fitted to most old carburettors

High speed valve
Nylon push in body

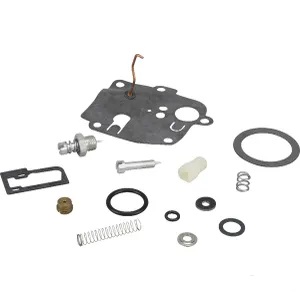

Carburettor overhaul kit
For old style 5HP Vertical crankshaft engine

"O" Ring inlet seal for Briggs and Stratton Sprint, Classic & Quatro carburetors

Carburetor pump diaphram fitted in the side of some older engines.
Secured with 4 screws

Carburetor pump diaphram for 5HP vertical crankshaft engines
Secured with 5 screws

Diaphram pump spring

Cap, for pump spring 692206

Carburettor/tank gasket. For older 5HP Vertical crankshaft engines. (model number begins with 13)

Carb pick up tube. Fits horizontal crankshaft sidevalve engines
Approx 67mm overall length

Fuel pick up pipe
Fits horizontal crankshaft engines with model starting 13
Approx 40mm overall length

Fuel pick up tube
Approx 65mm overall length

Pick up tube for 9 series 3.5HP tank mounted carburettor
Approx 67mm overall length

Intake manifold for 3 HPvertical crankshaft engines. Replaces old metal manifold 298775
Complete with gasket and screws

692189 Grommet, 90 degree
Connects alluminium breather tube to carburettor

Grommet, breather tube, 45 degree. Fits into valve cover of many small engines

Air filter gasket

Spacer, fuel tank. Fits between fuel tank and engine block. Replaces old number 94047
Approx 20mm long. (see also bolt 691640 below)

Screw. Holds fuel tank to engine block
Approx 50mm long. (see also spacer 691633 above)
Also head bolt on some models

RPM tachometer to accurately set engine speed
Easy to use and compact. Complete with instructions and wallet
Suits any engine

Throttle governor spring for most vertical crankshaft engines with tank mounted carburetor
Approx 65mm long

Governor spring for 5HP and some 4HP older vertical crankshaft engines.
Note this has a long straight wire end and is approx 100mm long

Oil filler/dipstick threaded rubber seal

Screw in oil filler cap

Oil dipstick. Screws directly into engine block.

Fuel cap for Quantum and Max engines
Now replaced with 692046 below, please order that

Fuel cap for Quantum and Max engines

Plastic fuel Cap to fit Briggs and Stratton engines with metal fuel tank
Fitted to lawnmowers etc.

Metal fuel cap for 2-4HP engines with metal tank
Thread O/D approx 38mm

Fuel tube for most applications

Sold in units of 20cm. Multiple purchases will be supplied in one total length
Use with 710075 clamps.(sold seperately)

Plated fuel tube hose clamp. Fits 11mm O/D fuel tube 395051

Black fuel tube clamp. Fits 12mm O/D fuel hose
(Slightly smaller than 95162)

Green fuel tube clamp. Fits fuel tube over 12mm O/D
(Slightly larger than 691038)

In line fuel shut off valve supplied with 2 x 95162 tube clamp

Fibre carburetor bowl lower seal washer for many engines
Approx 10mm inside diameter

Fibre carburetor bowl lower seal washer for many engines
Approx 9mm inside diameter

1/4 inch diameter bolt for engine cowling, carb bracket etc.
(approx 14mm long)

3.5mm diameter recoil rope for quantum engines.
Approx 2.4m long white
Replaces shorter rope 66734

Recoil rope for Briggs and Stratton engines
Approx 3.5mm diameter x 2.2m long. Dark grey

Rubber recoil grip with plastic insert suits engines where grip returns to the engine

Recoil pulley for many older engines with recoil mounted in engine cowling and square drive starter clutch
Approx 10.5cm diameter

Recoil pulley for 5HP + engines with square drive starter clutch
Comes with rope. Approx 13.5cm diameter

5mm x 1.6m long recoil rope for many larger engines. Soft white

Recoil starter large rubber grip with plastic insert
Fits 5mm diameter rope 692188 and pulley 295871

Easy grip starter handle. Allows full hand engagement for more solid handhold

Recoil rewind spring for engines with square clutch type recoil

Square drive starter clutch for older engines

Spring washer. Fits below starter clutch or flywheel nut.

Older type starter clutch removal tool
Sits over the clutch to enable standard socket set fitting

Recoil spring to fit older vertical pull starter
Engages plastic housing and centre cup with hook shaped cut outs towards each end of the spring

Pulley and Gear. Vertical starter

Valve chest gasket for many engines
Internal approx 6cm x 2.9cm

Valve chest cover gasket for many engines
Internal approx 5.6cm x 2.7cm

Cylinder head gasket for later 3.5HP horizontal crankshaft engines

Engine gasket set for older 9 series engines. Includes seals
Replaces old numbers 298989 & 699933

Head, valve & exhaust gasket set needed to carry out valve/decoke work on 3 & 3.5HP vertical crankshaft engines

Cylinder head gasket for older 4 HP vertical crankshaft engines

Cylinder head gasket for older 5HP engines

Screw. Holds fuel tank to engine block
Approx 50mm long. (see also spacer 691633 above)
Also head bolt on some models

Crankcase gasket for 3-4HP engines

Crankcase gasket .005" thick to reduce excessive end float by .010"
Has extra hole for use with 11 series engine

Lower oil seal for vertical crankshaft engines whose model number starts with a 9 & 11

Upper oil seal (flywheel side)
Approx 32mm outside diameter x 20mm inside diameter

399781S Lower oil seal for Quantum engines

Oil seal. Side APTO Shaft
Replaces old number 391484
Side drive shaft seal for engines which have a pto drive shaft emerging from the side of the sump

Pin. Retains brass gear onto side pto shaft

Pto drive torsion spring for "Power Trac" drive system
(Side PTO drive engaged internally)

Pto gear cover gasket

Screw in exhaust muffler for 3-4HP engines
This part can be fitted in lieu of oblong exhaust fitted with 2 bolts
Approx 8cm diameter

Exhaust muffler, oblong type for Sprint, Classic and Quattro engines
Includes bolts, bolt lock and gasket

Muffler bolt (x1)
Overall length approx 63mm
Shouldered diameter approx 3/8" x 45mm long

Exhaust bolt lock plate. Bolt hole centres approx 30mm apart

Exhaust Gasket. Bolt hole centres approx 30mm apart

Muffler deflector. Includes screws. Fits 692307 and 394569S mufflers

Tube type exhaust muffler for many small engines
Body approx 9cm long 4cm dia. with 2cm thread o/d

Muffler locknut for 89966 and other 3/4" (approx 20mm thread O/D) mufflers

Cigar type muffler with approx 26mm o/d thread (3/4 NPT)
16cm overall length

Bodied muffler with 26mm o/d thread (3/4" NPT)
Approx 13cm overall length with 8cm diameter muffler at largest point

Muffler locknut for 294599S Muffler
3/4" NPT thread approx 26mm thread O/D

494585 Exhaust assy
Complete with bolts and gasket to fit 5hp engines

Exahust gasket for older (model begins 13) 5HP verticaal crankshaft engine
Bolt hole centres approx 40mm apart

Indak Ignition key set. Contains two keys
Flat profile. Fits most electric start machines

Ignition spark tester. Tests the ignition system for efficiency
For all engines

Spark plug terminal (493880S) and rubber elbow (66538S), to fit all side valve HT leads

Metal shielded ignition terminal
Increases the effective length of HT lead by approx 35mm in cases where the lead needs cutting back

Electronic ignition armature magneto coil for Sprint, Classic & Quattro engines
Mounting hole centres approx 6.4cm apart

Electronic ignition armature magneto coil for 5 HP side valve engines
Also used to convert older points system engines to electronic ignition
Hole centres approx. 5.9cm apart

Electronic ignition armature magneto coil for 7 - 16 HP single cylinder side valve engines
Also used to convert older points system (coil 298968) engines to electronic ignition
Mounting hole centres approx 6.4cm apart

Stop wire. Approx 42cm long. Can also be used on old points ignition systems by cutting off the spade connector.

Flywheel puller for small engines
Distance between outer hole centres approx 40mm
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)

Flywheel puller for mid range engines
Distance between outer hole centres approx 51mm
If your engine has a square drive starter clutch holding down the flywheel, you will also require 690662 nut (see below)

Nut, crankshaft/flywheel
Required for puller use on engines which have a square drive rewind starter clutch

Contact breaker points for most points ignition engines
(Fitted under the flywheel) Includes spring compressing tool

Points plunger. (pushes up 294628 points arm to open contacts)

Flywheel key to fit most engines
Approx. 14mm long x 3mm x 4mm

Half moon woodruff key to fit crankshaft extension of most small Briggs and Stratton engines applications
No 505 - 5/32" x 5/8" (approx 4mm thick x 15mm long)

Sprint 40 replacement vertical crankshaft engine complete.

Basic engine fits rotary lawnmower and other vertical crankshaft applications.
Replacement for Sprint, Classic, Quatro and older engines up to 4HP.
Fitted with OPC (deadmans handle) stop control but also includes throttle stop and instructions to disable the brake if required for use with non OPC machines.
Prime and pull starting.
Crankshaft extension 7/8" diameter x 62mm long(extends approx 50mm from lower engine seal)
10T5020139B1YY7001

Click for more information about this engine


12kg

Quantum XM55 replacement vertical crankshaft engine complete.

High quality engine fits rotary lawnmower and other vertical crankshaft applications.
Replacement for most engines up to 6HP.
Fitted with OPC (deadmans handle) stop control but also includes throttle stop and instructions to disable the brake if required for use with non OPC machines.
Prime and pull starting.
Crankshaft extension 7/8"(22.2mm) diameter x 62mm long from mountings(extends approx 52mm from lower engine seal)
124T021952B1YY7001

Click for more information about this engine


16kg

Quantum XM55 replacement vertical crankshaft engine complete.

High quality engine fits rotary lawnmower and other vertical crankshaft applications.
Replacement for most engines up to 6HP.
Fitted with OPC (deadmans handle) stop control but also includes throttle stop and instructions to disable the brake if required for use with non OPC machines.
Prime and pull starting.
Crankshaft extension 7/8"(22.2mm) diameter x 80mm long from mountings(extends approx 71mm from lower engine seal)
124T021950B1YY7001

Click for more information about this engine


16kg
